Standard Polyethylene Spiral Binding for general applications
Art.-No. 161-41207 | SBPE9D-PE-BK | Details

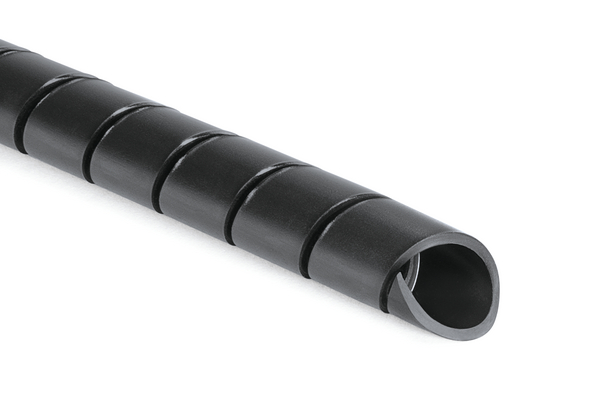

SBPE - Black PE Spiral Wrap.

Organises and protects cables and hoses
Suitable for retro-fitting
Cables branch out at any point
Wide range of diameters and colours

Add to watchlist

Request your individual offer now

Request quote

Distributors near you

Downloads Datasheet

More products in this product group:

Standard Polyethylene Spiral Binding for general applications >

Base Data

Application	SBPE spiral binding is suitable for standard electrical applications and panel building and plant engineering. Sizes 4 and 9 are also available in practical 5 metre lengths.
Colour	Black (BK)
Key product features	abrasion resistant, wrappable
Material	Polyethylene (PE)
PART DESCRIPTION	SBPE9D-PE-BK
Pack Cont.	5m
Package Content packed in	Bag
Product Family	SBPE
Product Group	Standard Polyethylene Spiral Binding for general applications
Type	SBPE9D
Variant	Spiral Binding

Product Dimensions


Bundle Diameter max (metric)	100mm
Bundle ∅	10-100mm
Bundle ∅ min.	10mm
Diameter (D)	9mm
Nominal ∅	9mm
Nominal ∅ (imperial)	0.38"
Pitch (P)	12.5mm
Wall (WT)	1.4mm

Downloads

Specifications

Flammability	UL 94 HB
Halogen-free	Yes
Intermittent Operating Temperature	+120°C
Operating Temperature	-60 °C to +80 °C, intermittent +120 °C
ROHS compliant	Yes
Specifications

Logistics and Packaging

Country of Origin	GB
Packaging 1 - Weight (kg)	0.3kg
Reel Length	5m

More Information

ETIM 7.0 Key	EC002604
ETIM 8.0 Key	EC002604
ETIM 9.0 Key	EC002604
