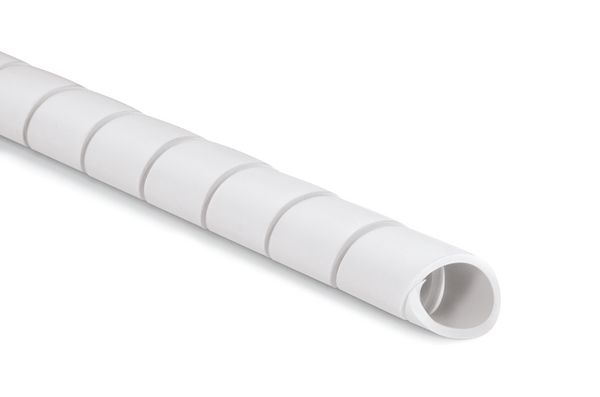

Spiral binding 20 mm - 150 mm, PE-FR, white, 30 m
Art.-No. 161-43300 | SBPEFR16-PE-FR-WH |  Details

SBPEFR - White flame retardant PE Spiral Wrap.

    • Organises and protects cables and hoses
    • Self-extinguishing according to UL94 V2
    • Suitable for retro-fitting
    • Cables branch out at any point
    • Wide range of diameters and colours
    Show more
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads Datasheet
    Application The flame-retardant properties of SBPEFR make it suitable for applications in the automobile and electrical industries, where enhanced fire protection is needed.
    Colour White (WH)
    Local order number 161-43300
    Material Polyethylene (PEFR), Flame retardant
    PART DESCRIPTION SBPEFR16-PE-FR-WH
    Pack Cont. 30m
    Package Content packed in Box
    Product Family SBPEFR
    Product Group Polyethylene Spiral Binding for enhanced flame protection
    Short Description Spiral binding 20 mm - 150 mm, PE-FR, white, 30 m
    Type SBPEFR16
    Variant Spiral Binding
    Bundle Diameter max (metric) 150mm
    Bundle ∅ 20-150mm
    Bundle ∅ min. 20mm
    Diameter (D) 16mm
    Nominal ∅ 16mm
    Nominal ∅ (imperial) 0.63"
    Pitch (P) 16.0mm
    Wall (WT) 1.6mm
    Weight/Unit 0.09kg
    ELV compliant Dir. Art. 4 (2) YES
    Flammability UL 94 V2, FMVSS 302, Type B
    Halogen-free No
    Hazardous Goods No
    Intermittent Operating Temperature +120°C
    Operating Temperature -60 °C to +80 °C, intermittent +120 °C
    ROHS compliant Yes
    Specifications
    Country of Origin GB
    Customs Number 39269097
    GTIN-13 / EAN 5022660549007
    Packaging 1 - Height (m) 0.265m
    Packaging 1 - Length (m) 0.4m
    Packaging 1 - Qty 30
    Packaging 1 - Type Reel
    Packaging 1 - Volume (m³) 0.0318m³
    Packaging 1 - Weight (kg) 2.77kg
    Packaging 1 - Width (m) 0.3m
    Reel Length 30m
    ETIM 7.0 Key EC002604
    ETIM 8.0 Key EC002604
    ETIM 9.0 Key EC002604
