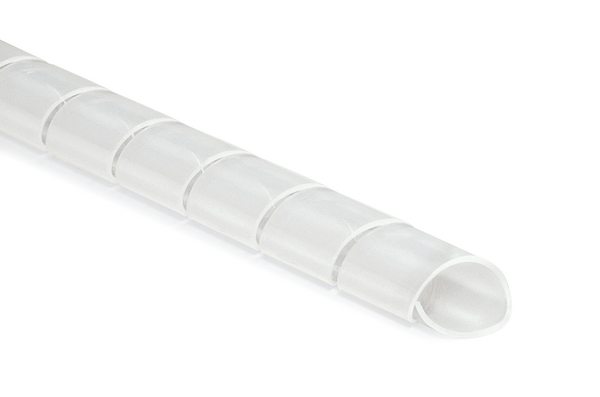

PTFE Spiral Binding for superior protection
Art.-No. 161-45301 | SBPTFE16 72mm-PTFE-NA |  Details

SBPTFE - High temperature resistant Spiral Wrap.

    • High temperature resistance
    • Excellent fire protection
    • Self-extinguishing according to UL94 V0
    • Very good solvent and acid resistance
    • Organises and protects cables and hoses
    • Suitable for retro-fitting
    • Cables branch out at any point
    Show more
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads Datasheet
    Application Wherever superior protection against chemical and extreme temperatures are important, the use of SBPTFE is recommended.
    Colour Natural (NA)
    Local order number 161-45301
    Material Polytetrafluoroethylene (PTFE)
    PART DESCRIPTION SBPTFE16 72mm-PTFE-NA
    Pack Cont. 1000pcs.
    Package Content packed in Bag
    Product Family SBPTFE
    Product Group PTFE Spiral Binding for superior protection
    Type SBPTFE16 72mm
    Variant Spiral Binding
    Bundle Diameter max (metric) 150mm
    Bundle ∅ 20-150mm
    Bundle ∅ min. 20mm
    Diameter (D) 16mm
    Length (L) 72mm
    Nominal ∅ 16mm
    Nominal ∅ (imperial) 0.63"
    Pitch (P) 16mm
    Wall (WT) 1.0mm
    Flammability UL 94 V0
    Halogen-free No
    Intermittent Operating Temperature +350°C
    Operating Temperature -60 °C to +260 °C, intermittent +350 °C
    ROHS compliant Yes
    Specifications
    Country of Origin GB
    GTIN-13 / EAN 5022660654800
    ETIM 7.0 Key EC002604
    ETIM 8.0 Key EC002604
    ETIM 9.0 Key EC002604
    Cable wraps, spiral wraps Cable wraps, spiral wraps

    Cable wraps, spiral wraps

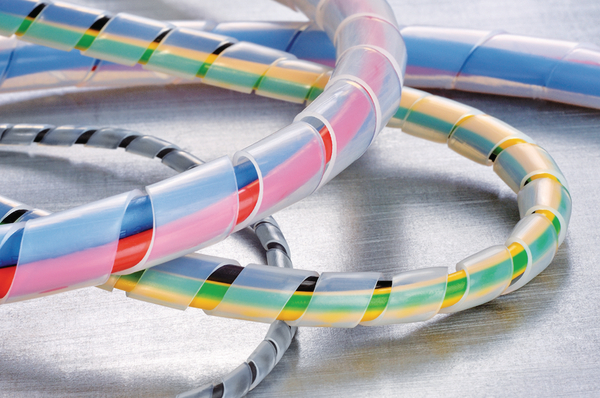

    From standard spiral hoses for office use to flame retardant spiral cable wraps to heat and chemical resistant cable wraps for industry: Discover our portfolio here.

    Cable wraps >
