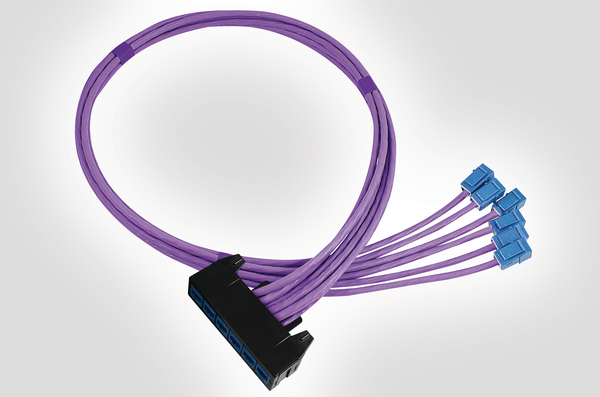

RapidNet 6 Port Category 6 Short Body Cassette to GST Keystone Jack
Art.-No. 859-38132
| RN06UC6-CBGTBL-10.0M
|
Details
- Exceeds Category 6 performance standards
- Designed for use with HellermannTyton Angled RapidNet Panels
- Factory pre-terminated and tested
- Ideal solution for ‘to the desk’ installations
- Compatible with angled Euro and LJ6C modules
- 5* different colour options
- Backward compatible with Category 5e, Category 5 and voice
Request your individual offer now
Request quote
More products in this product group:
| Colour | Violet (VT) |
| Connector Colour | Blue (BU) |
| Connector Type | RJ45 UTP |
| Description | The Short Body RapidNet Cassette has been designed for use with HellermannTyton Angled and Standard RapidNet Panels and the shorter 32mm cassette body depth allows the RapidNet solution to be used in areas with limited access or restricted space where a standard RapidNet Cassette cannot be installed. The RapidNet 6 port Short Body Cassette to keystone jack option presents 6 ports at one end and 6 keystone jacks at the other end, with 4 cassettes fitting into an angled or standard RapidNet panel. A fully loaded panel presents 24 ports in 1U of space. The Short Body cassette to keystone jack is designed to support ‘to the desk’ installations, with the keystone jack fitting being easily clipped into a selection of modules that can be fitted into floor boxes or wall mounted face plates. The Category 6 UTP keystone jacks are available in 5 colours (Black(BK), Blue(BL), Green(GN), Red(RD) and Yellow(YE)) with the same colour being used at both ends for all jacks. This allows for differentiation of looms at the patch panel aiding identification access levels, paths, routes or systems within the network. |
| PART DESCRIPTION | RN06UC6-CBGTBL-10.0M |
| Pack Cont. | 10.0m |
| Performance Category | Category 6 (Class E) |
| Port count | 6 |
| Product Family | Short Body Cassette to GST Keystone Jack |
| Product Group | RapidNet 6 Port Category 6 |
| Short Description | RapidNet 6 Port Category 6 Short Body Cassette to GST Keystone Jack |
| Technical Description | The RapidNet Category 6 UTP solution is designed using U-UTP cable loosely bundled in a 5 around 1 configuration which maintains performance and reduces alien crosstalk. The Short Body cassette has a 32mm depth and is manufactured with a simple push clip mechanism and polarising pips to prevent incorrect insertion. The keystone jacks are manufactured to a uniform length (staggered lengths are available on request). The keystone jacks can be packaged with a heat-shrink pull sock to protect the jacks during installation. Rear cable management is provided within the RapidNet Short Body Cassette with integral strain relief which provides protection to all the cables and their terminations. All RapidNet terminations are tested to exceed all ISO/EIA 11801:2002 1.1 and ANSI/TIA/EIA 568-C Category 6 standards. All RapidNet Category 6 cables are made with LS0H material, complying with the latest European fire ratings. NB: Part Numbers given are for 10m looms in the standard 5 colours Black(BK), Blue(BL), Green(GN), Red(RD) and Yellow(YE). Lengths are available from 10m to 90m in 0.5m increments. *An additional 7 colour options are available on request, contact HellermannTyton Sales Desk for further details. |
| Type | RN06UC6-CBGTBL-10.0M |
