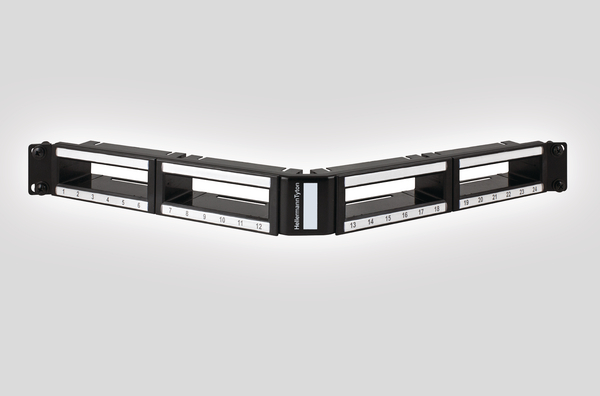

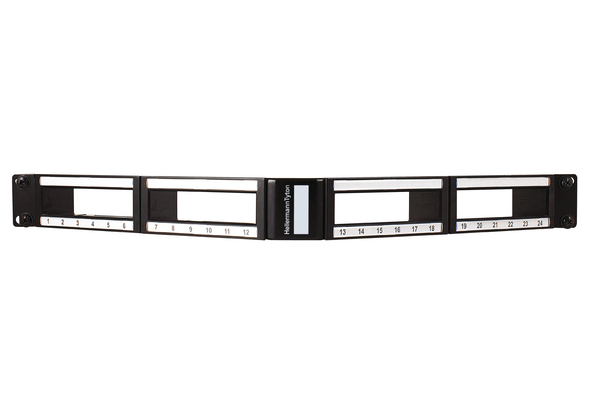

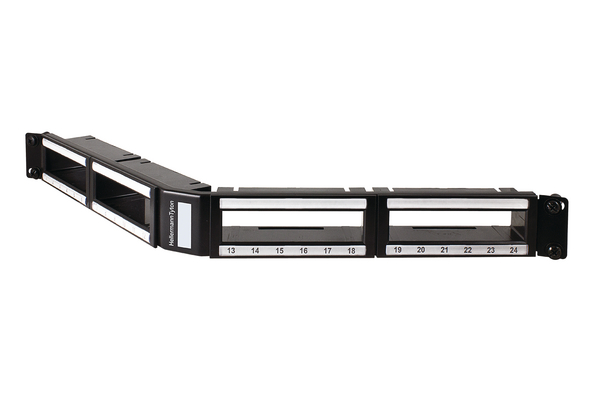

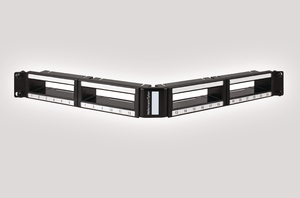

RapidNet 1U 6 Port Cassette Angled Panel with Cage Nuts
Art.-No. 859-30059
| RNA6UXX-PE1UCN
|
Details
- Angled design provides increase rack capacity
- Accommodates 4 RapidNet Short Body Cassettes
- Simple, easy insertion with push down clip
- Clear screen printed dual labelling fields
- Central panel labelling for each U space
- Supplied with Cage Nuts as standard
- Optional rear cable manager available
- Also available in 2U 48 port configuration
Request your individual offer now
Request quote
More products in this product group:
| Colour | Black (BK) |
| Description | The 1U 24 port panel accommodates four 6 port short body Category 6A, Category 6, Category 5e cassettes and the full range of Fibre Fanout Modules. The angled design of the panel removes the need for the use of front cable management increasing capacity by up to 50%. The panel offers dual labelling for each cassette and a central labelling for U identification and is supplied with Cage Nut fixings as standard. The RapidNet short body cassettes and fibre fanout modules simply push into the panels, snapping in with a push down clip. A fully loaded panel presents 24 Category 6A, Categroy 6 or Category 5e RJ45 ports. An optional rear cable manager is also available. |
| PART DESCRIPTION | RNA6UXX-PE1UCN |
| Package Content packed in | Box |
| Port count | 24 |
| Product Family | Angled 6 Port 1U RapidNet Panel |
| Product Group | RapidNet Accessories |
| Short Description | RapidNet 1U 6 Port Cassette Angled Panel with Cage Nuts |
| Technical Description | The RapidNet Angled panel is manufactured from 1.6mm powder coated mild steel making it rigid and robust. The panel has a matt black finish and is screen printed with port numbers 1 to 24 as well as clear port identification labelling areas for easy user identification which can be customised through Alpha Label software at www.htdata.co.uk. The panels is supplied with Cage Nuts as standard, panels can also be supplied with Rack Snaps, screw fixings or without fixings if required |
| Type | RNA6UXX-PE1UCN |
Download
RNA6UXX-PE1URS
859-30058
