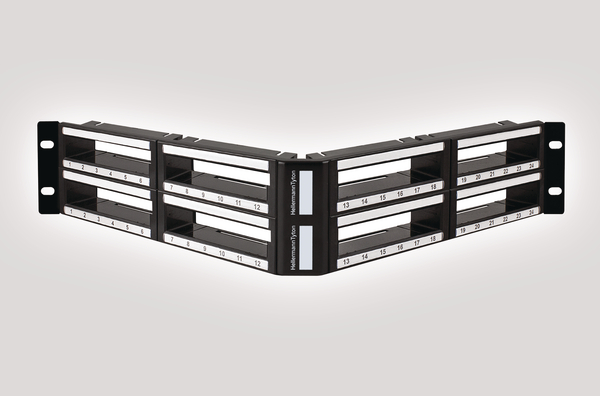

RapidNet 2U 6 Port Cassette Angled Panel
Art.-No. 859-30065
| RNA6UXX-PE2UXX
|
Details
Request your individual offer now
Request quote
More products in this product group:
| Colour | Black (BK) |
| Description | The 2U 48 port panel accommodates eight 6 port short body Category 6A, Category 6, Category 5e cassettes and the full range of Fibre Fanout Modules. The angled design of the panel removes the need for the use of front cable management increasing capacity by up to 50%. The panel offers dual labelling for each cassette and a central labelling for U identification. The RapidNet short body cassettes and fibre fanout modules simply push into the panels, snapping in with a push down clip. A fully loaded panel presents 48 Category 6A, Categroy 6 or Category 5e RJ45 ports. An optional rear cable manager is also available. |
| PART DESCRIPTION | RNA6UXX-PE2UXX |
| Package Content packed in | Box |
| Port count | 48 |
| Product Family | 2U 6 Port Cassette Angled Panel |
| Product Group | RapidNet Accessories |
| Short Description | RapidNet 2U 6 Port Cassette Angled Panel |
| Technical Description | The RapidNet Angled panel is manufactured from 1.6mm powder coated mild steel making it rigid and robust. The panel has a matt black finish and is screen printed with port numbers 1 to 48 as well as clear port identification labelling areas for easy user identification which can be customised through Alpha Label software at www.htdata.co.uk. The panels is supplied without fixings as standard, panels can also be supplied with Rack Snaps, Cage Nuts or screw fixings if required |
| Type | RNA6UXX-PE2UXX |
Download
RNA6UXX-PE2URS
859-30062
