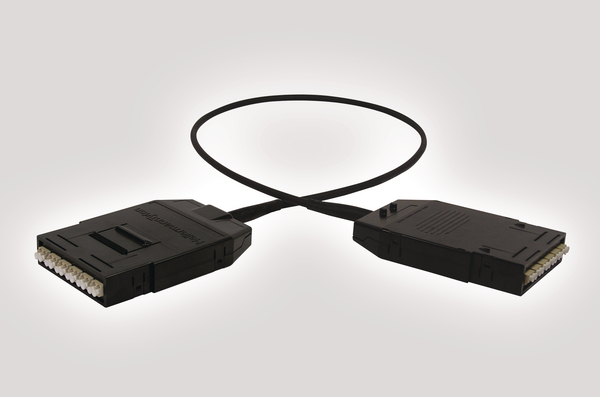

OM3 RapidNet Fibre LC 12 Core Cassette to Cassette
Art.-No. 859-20622
| RNFTD12-LCLCM3-10.0M
|
Details
- Up to 48 fibres in 1U of Space
- Significantly reduced installation times
- Available in OM3, OM4, OS2 and OS1
- Dual labelling fields
- Interchangeable with other RapidNet Cassettes
- Pre-tested with test results supplied
Request your individual offer now
Request quote
More products in this product group:
| Connector Colour | Beige (BGE) |
| Connector Type | LC |
| Description | The RapidNet Fibre LC Cassette to LC Cassette is pre-terminated offering LC connectivity in either single mode or multimode. The RapidNet LC Cassette presents 12 ports in one cassette, which enables up to 48 fibres in 1U of rack space, with 4 cassettes fitting into a RapidNet Patch Panel. The RapidNet LC Cassette to LC Cassette solution has been designed to support a wide range of applications including data centres, campus connectivity and disaster recovery sites providing reduced installation times, efficient use of space and high performance. |
| Local order number | RNFTD12-LCLCM3-10.0M |
| PART DESCRIPTION | RNFTD12-LCLCM3-10.0M |
| Performance Category | OM3 Multimode |
| Port count | 12 |
| Product Family | Cassette to Cassette |
| Product Group | RapidNet Fibre LC 12 Core |
| Short Description | OM3 RapidNet Fibre LC 12 Core Cassette to Cassette |
| Technical Description | The LC cassette offers up to 12 ports in one cassette and is manufactured with a single push clip mechanism and polarising clips to prevent incorrect insertion. Fibre Optic management is provided within the RapidNet Cassette with integral strain relief which provides protection to all the cables and their terminations. The individual fibres within the cassette are managed using positive bend radius management to ensure minimum losses and maximum performance. All RapidNet terminations are tested to exceed the latest published versions of ISO/IEC 11801, BS/EN50173 and ANSI/TIA/EIA 568 – C standards. NB. Part Numbers given are for a 10m loom as an example. Other lengths are available on request that meet the maximum distance performances defined in the latest published versions of ISO/IEC 11801, BS/EN50173 and ANSI/TIA/EIA 568 – C. |
| Type | RNFTD12-LCLCM3-10.0M |
