23/12/2024

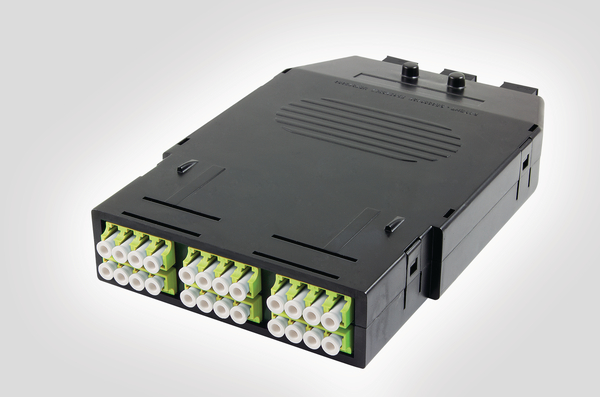

OM5 RapidNet Fibre LC Cassette with 24 Ports and 3 Rear MTP Connectors
Art.-No. 859-23201 | RNFTQ24-LC3MM5-XX.XX Details

  • 96 fibres in 1U of Space
  • Significantly reduced installation times
  • Available in OM4 and OM5
  • Interchangeable with other RapidNet Cassettes
  • MTP rear connector ideal for installations in areas of limited space
  • Pre-tested with test results supplied
  • Male MTP Connectors
Show more

Request your individual offer now

Colour Light Green (LTGN)
Connector Colour Light Green (LTGN)
Connector Type LC
Description The RapidNet 8 Fibre LC Cassette with MTP connectivity is pre-terminated offering 24 ports in one cassette and has 3 MTP connectors on the rear of the case for use with MTP back bone cables or fibre fan outs. The RapidNet LC Cassette with MTP connectivity solution has been designed to make installation quicker and easier, especially where space is limited, by providing reduced installation times, efficient use of space, flexible configurations and high performance.
PART DESCRIPTION RNFTQ24-LC3MM5-XX.XX
Performance Category OM5 Multimode
Port count 24
Product Family Cassette with 3 Rear MTP Connectors
Product Group RapidNet Fibre LC
Short Description OM5 RapidNet Fibre LC Cassette with 24 Ports and 3 Rear MTP Connectors
Type RNFTQ24-LC3MM5-XX.XX

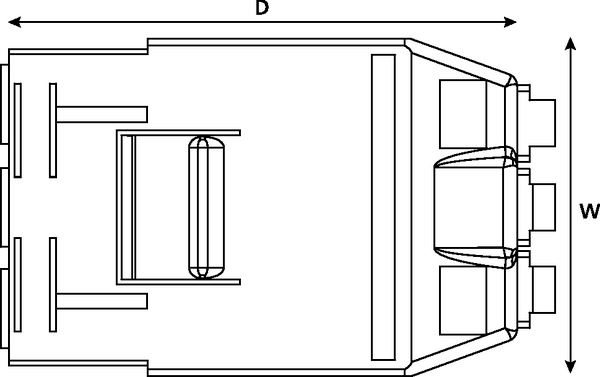

Depth (D) 130mm

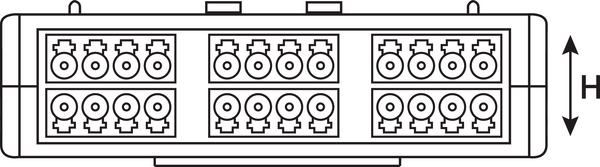

Height (H) 27mm
Width (W) 102mm
Optical Performance Multimode
Country of Origin GB
Dimensions W x H x D 102 mm x 27 mm x 130 mm
GTIN-13 / EAN 5022660160462
