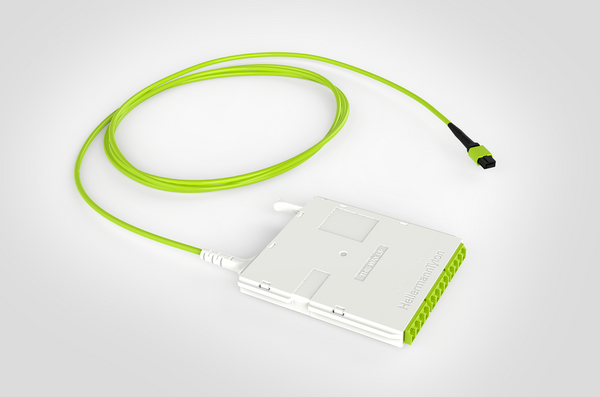

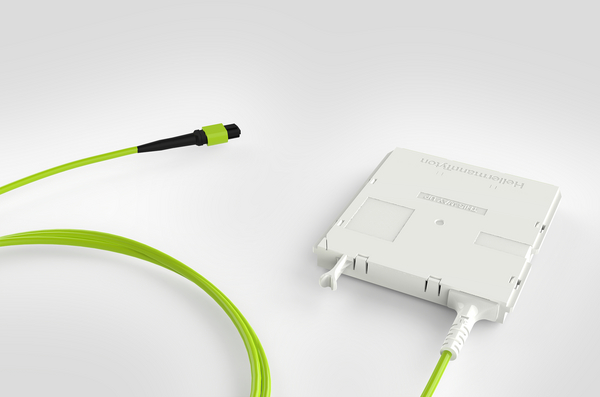

RapidNet Ultra12 - LC - MTP Elite Tethered Cassette - 12F Multimode OM5 - Polarity C
Art.-No. 859-24073
| RNU12-C-12M5-LCMFL010M
|
Details
- High fibre density: LC 12F, CS 18F, SN 24F per cassette
- Custom length mtp elite tethered cable
- Reduced insertion loss performance
- Factory terminated & tested
- Best in class ultra-low loss connectivity
- Effortless plug & play system
- Optional bare end for on-site splicing UL94 V0 compliant
- 3.0mm Single jacket or 4.5x0.5mm Double Jacket options
- Multimode made with Corning® ClearCurve® Fibres
- CPR Euroclass: B2ca-s1a, d1, a2
Request your individual offer now
Request quote
More products in this product group:
| Application | High Density Fibre System, Data centre, AI, Enterprise, Co-Location, Hyperscale. |
| Colour | Light Green (LTGN), White (WH) |
| Connector Colour | Light Green (LTGN) |
| Connector Type | LC |
| Description | RapidNet Ultra12 - LC - MTP Elite Tethered Cassette - 12F Multimode OM5 - Polarity C |
| PART DESCRIPTION | RNU12-C-12M5-LCMFL010M |
| Package Content packed in | pcs. |
| Performance Category | Multimode, OM5 Multimode |
| Port count | 12 |
| Product Family | Ultra12 LC - MTP Elite Tethered Cassette |
| Product Group | Data Centre High Density Fibre System - Ultra12 LC - MTP Elite Tethered Cassette |
| Short Description | RapidNet Ultra12 - LC - MTP Elite Tethered Cassette - 12F Multimode OM5 - Polarity C |
| Technical Description | RapidNet ULTRA12 Tethered Cassettes are designed to facilitate transition from a single MTP connector into small form factor (SFF)or very small form factor (VSFF) connectivity patching array. Cassettes are factory terminated and tested offering best in class ultra low loss connectivity for rapid deployment of ULTRA12 fibre systems, supporting the increasing demand on parallel optics. Tethered Cassettes offer lower insertion loss compared to typical cassette and backbone cable configurations. The compact design allows for a ultra high density installations to be realised, maximizing critical connectivity real estate. RapidNet ULTRA12 Cassettes are designed to be compatible with future VSFF connectors such as CS and SN which will take the fibre capacity from 12 fibres (LC) to either 18 fibres (CS) or 24 fibres (SN). Tethered cables can be produced to your required length with single or double jacket constructions.Tethered cassettes are made with 3.0mm single jacket cables which contain Corning® ClearCurve® Multimode fibres. Cables conform to B2ca-s1a, d1, a2 CPR EuroClass. |
| Type | RNU12-C-12M5-LCMFL010M |
| Variant | Modular Fiber Assembly |
