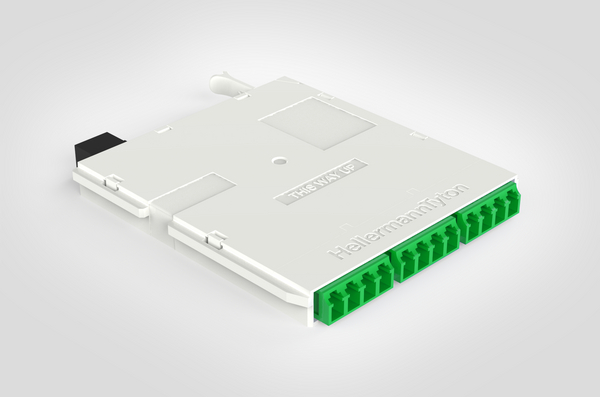

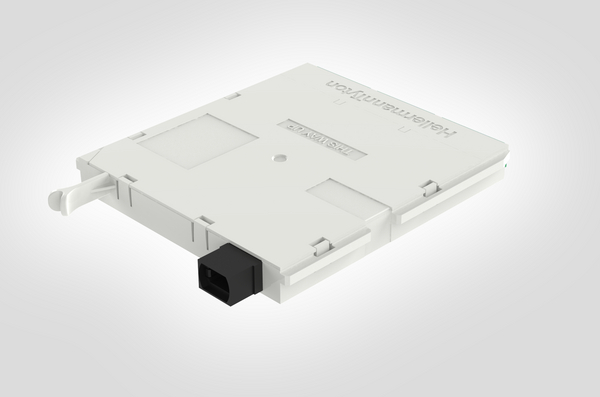

RapidNet Ultra12 Cassette - 12F - Singlemode OS2 - LC/APC - 1x MTP(M) Polarity C
Art.-No. 859-24039
| RNU12-C-12S2LP1M
|
Details
- High fibre density: LC 12F, CS 18F, SN 24F per cassette
- Singlemode made with Corning® SMF-28® Fibres
- Rear MTP Elite connectivity
- Factory terminated & tested
- Best in class ultra low loss connectivity
- Effortless plug & play system
- Signal White RAL 9003
- UL94 V0 compliant
Request your individual offer now
Request quote
More products in this product group:
| Application | High Density Fibre System, Data centre, AI, Enterprise, Co-Location, Hyperscale. |
| Colour | Green (GN), White (WH) |
| Connector Colour | Green (GN) |
| Connector Type | LC-APC |
| Description | RapidNet Ultra12 Cassette - 12F - Singlemode OS2 - LC/APC - 1x MTP(M) Polarity C |
| PART DESCRIPTION | RNU12-C-12S2LP1M |
| Package Content packed in | pcs. |
| Performance Category | OS2 Single Mode, Single Mode, G657.A1 |
| Port count | 12 |
| Product Family | Ultra12 Cassette Assembly |
| Product Group | Data Centre High Density Fibre System - Ultra12 Cassette Assembly |
| Short Description | RapidNet Ultra12 Cassette - 12F - Singlemode OS2 - LC/APC - 1x MTP(M) Polarity C |
| Technical Description | RapidNet ULTRA12 Cassettes are designed to efficiently transition MTP Backbone assemblies into small form factor (SFF)or very small form factor (VSFF) connectivity. Cassettes are factory terminated and tested offering best in class ultra low loss connectivity for rapid deployment of ULTRA12 fibre systems. The compact design allows for a ultra high density installations to be realised, maximizing critical connectivity real estate. RapidNet ULTRA12 Cassettes are designed to be compatible with future VSFF connectors such as CS and SN which will take the fibre capacity from 12 fibres (LC) to either 18 fibres (CS) or 24 fibres (SN).RapidNet ULTRA12 Cassette assemblies are made with 250um Corning® SMF-28® fibres for Singlemode and ClearCurve® fibres for Multimode. |
| Type | RNU12-C-12S2LP1M |
