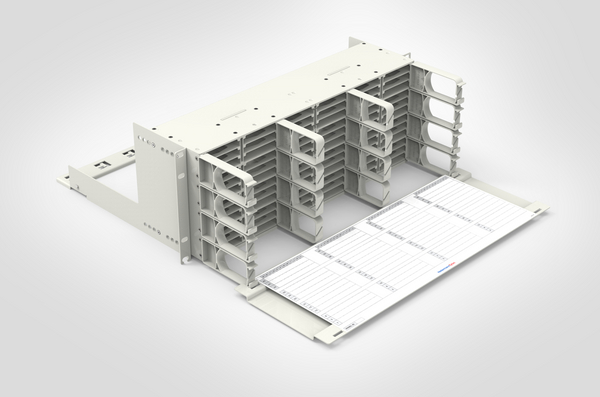

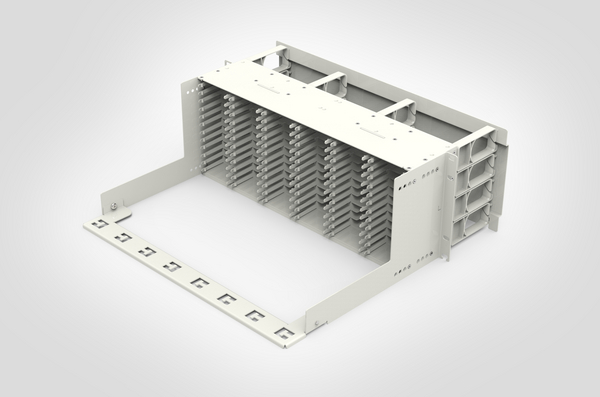

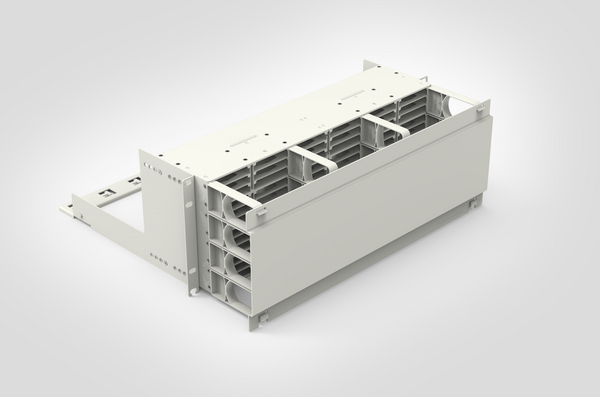

RapidNet Ultra 4U 19" Panel Housing For Ultra8 Cassettes - White
Art.-No. 859-30075
| RNU4U8WH
|
Details
- High fibre density: LC 576F, CS 864F, SN 1,152F per U
- Rear-loading cassettes
- Integrated rear cable management
- Integrated front patchcord management rings
- Adjustable mounting brackets
- Patching field swing down cover
- Identification label matrix
- 19” Mounting profile
- Signal White RAL 9003
- Fast, one person installation
Request your individual offer now
Request quote
| Application | High Density Fibre System, Data centre, AI, Enterprise, Co-Location, Hyperscale. |
| Colour | White (WH) |
| Density | high |
| Description | 19" Panel Housing to support RapidNet Ultra8 cassettes. Available in RAL 9003 Signal White. |
| PART DESCRIPTION | RNU4U8WH |
| Package Content packed in | EA |
| Performance Category | Modular |
| Product Family | 19" Rack Mountable for Ultra8 Cassettes |
| Product Group | Data Centre High Density Fibre Panel Housing |
| Short Description | RapidNet Ultra 4U 19" Panel Housing For Ultra8 Cassettes - White |
| Technical Description | 4U 19” panel housings for ULTRA8 cassette footprints. Each housing comes standard with integrated rear cable management support for managing and anchoring incoming cables, conduit or breakout manifolds. Adjustable side mounting brackets allow the panel to be recessed. Integrated front patchcord management rings support high density patching by helping to maintain correct bend radius, directing cables naturally into vertical management and remove the need for additional horizontal management. The pivoting door with port I.D. matrix maintains protection for the patching field and offers a clean look. The door swings down and can be fully removed. The 19” panel housing comes pre-assembled with mounting kit and rear manager to fit onsite. |
| Type | RNU4U8WH |
| Variant | Modular Panels |
