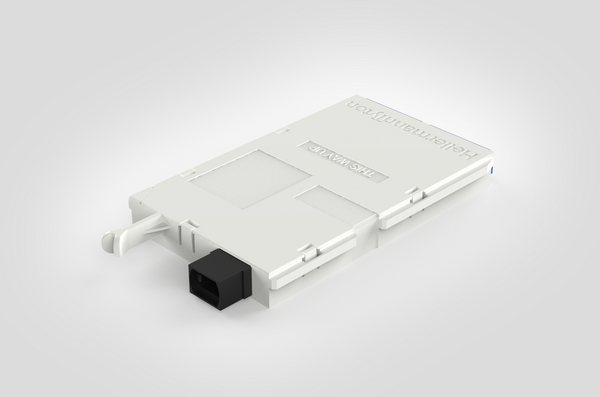

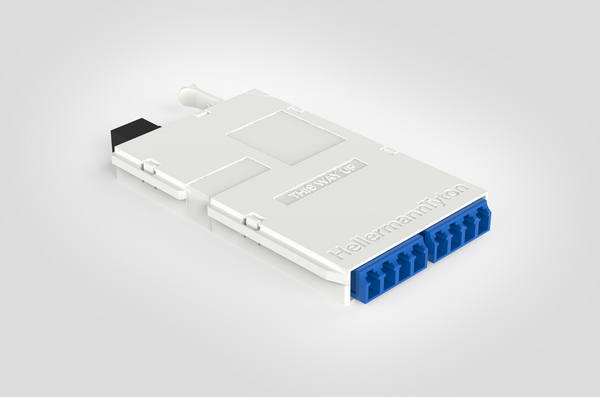

RapidNet Ultra8 Cassette - 12F - Single Multimode OS2 - LC - 1x MTP(M) Polarity A
Art.-No. 859-24014
| RNU8-A-08S2LC1M
|
Details
- High fibre density: LC 8F, CS 12F, SN 16F per cassette
- Singlemode made with Corning® SMF-28® Fibres
- Rear MTP Elite connectivity
- Factory terminated & tested
- Best in class ultra low loss connectivity
- Effortless plug & play system
- Signal White RAL 9003
- UL94 V0 compliant
Request your individual offer now
Request quote
More products in this product group:
| Application | High Density Fibre System, Data centre, AI, Enterprise, Co-Location, Hyperscale. |
| Colour | Blue (BU) |
| Connector Colour | Blue (BU) |
| Connector Type | LC |
| Description | RapidNet Ultra8 Cassette - 12F - Single Multimode OS2 - LC - 1x MTP(M) Polarity A |
| PART DESCRIPTION | RNU8-A-08S2LC1M |
| Package Content packed in | EA |
| Performance Category | G657.A1, OS2 Single Mode, Single Mode |
| Port count | 8 |
| Product Group | Data Centre High Density Fibre System - Ultra8 Cassette Assembly |
| Short Description | RapidNet Ultra8 Cassette - 12F - Single Multimode OS2 - LC - 1x MTP(M) Polarity A |
| Technical Description | RapidNet ULTRA8 Cassettes are designed to efficiently transition MTP Backbone assemblies into small form factor (SFF)or very small form factor (VSFF) connectivity. Cassettes are factory terminated and tested offering best in class ultra low loss connectivity for rapid deployment of ULTRA8 fibre systems. The compact design allows for a ultra high density installations to be realised, maximizing critical connectivity real estate. RapidNet ULTRA8 Cassettes are designed to be compatible with future VSFF connectors such as CS and SN which will take the fibre capacity from 8 fibres (LC) to either 12 fibres (CS) or 16 fibres (SN). RapidNet ULTRA8 Cassette assemblies are made with 250um Corning® SMF-28® fibres for Singlemode and ClearCurve® fibres for Multimode. |
| Type | RNU8-A-08S2LC1M |
| Variant | Modular Fiber Assembly |
