03/12/2024

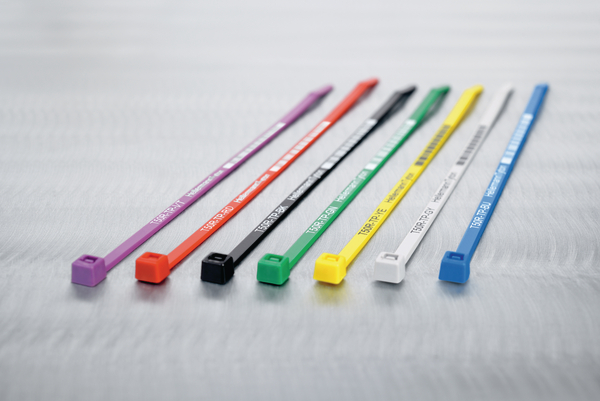

Custom printed cable tie inside serrated, 270x4.60mm, ∅5.00-73.00mm, green, 100pcs.
Art.-No. 137-00141 | LK2APRN-PA66-GN Details

  • Use state of the art laser beam or thermal transfer offset print options for custom texts
  • Laser beam printing is ideal for print durability
  • Thermal transfer offset printing is ideal for high definition graphics
  • Excellent character legibility
  • Print jobs and graphics can be transmitted electronically
Show more

Request your individual offer now

Application HellermannTyton provides a simple cost effective solution whether to identify pipes for example with GAS or WATER or cables, with LIVE or NEUTRAL. The most popular printed ties are sequentially numbered and used to provide traceability and an audit trail for sealing bags that may contain anything from waste paper that is waiting to be shredded, to bags containing clinical waste in hospitals. These ties can also be custom printed to include a company name, location or specific department. The products are provided to clients in the following areas: utility companies, healthcare food processing, agriculture, hire shops and companies carrying out servicing and calibration.
Colour Green (GN)
Local order number LK2A-TP-GN
Material Polyamide 6.6 (PA66)
PART DESCRIPTION LK2APRN-PA66-GN
Pack Cont. 100pcs.
Package Content packed in Bag
Product Family LK-Ties
Product Group Custom printed plastic cable ties
Tie Closure plastic pawl
Type LK2APRN
Variant Inside Serrated
Bundle Diameter max (metric) 73.00mm
Bundle ∅ 5.00-73.00mm
Bundle ∅ min. 5.00mm
Length (L) 270mm
Min.Tensile Strength 225N
Print Method thermal transfer print
Weight/Unit 0.0013kg
Width (W) 4.60mm
ELV compliant Dir. Art. 4 (2) YES
Hazardous Goods No
ROHS compliant Yes
Specifications
Country of Origin GB
Customs Number 39269097
GTIN-13 / EAN 5022660343001
Packaging 1 - Height (m) 0.025m
Packaging 1 - Length (m) 0.305m
Packaging 1 - Qty 100
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00116
Packaging 1 - Weight (kg) 0.130001kg
Packaging 1 - Width (m) 0.152m
Packaging 3 - Height (m) 0.111m
Packaging 3 - Length (m) 0.295m
Packaging 3 - Qty 1000
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.0066
Packaging 3 - Weight (kg) 1.8kg
Packaging 3 - Width (m) 0.201m
Packaging 4 - Height (m) 1.143m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 108000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.097
Packaging 4 - Weight (kg) 215.4kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC001288
ETIM 8.0 Key EC001288
ETIM 9.0 Key EC001288
