FCT UV Stabilized Convoluted Tubing- Slit Version
???product.artNr??? 169-00170 | FCTUV19S-PA6UV-BK |

???product.copy???
HelaGuard PA6 Light is very flexible and can be used in moving applications.

    • Will remain structurally sound in applications with high levels of UV exposure.
    • Ranging in size from 6.8mm to 23.5mm inside diameter
    • Halogen Free
    • Highly Flexible
    ???myht.addtowatchlist???

    ???product.orderrequest???

     ???product.orderrequest.link???
    ???downloads???

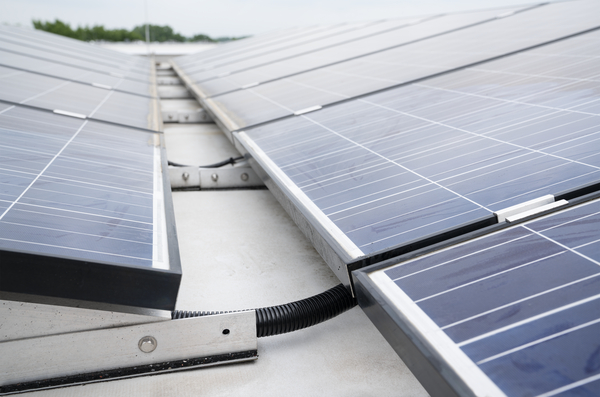

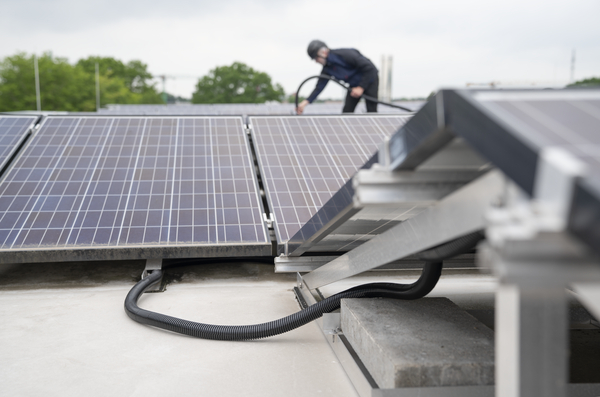

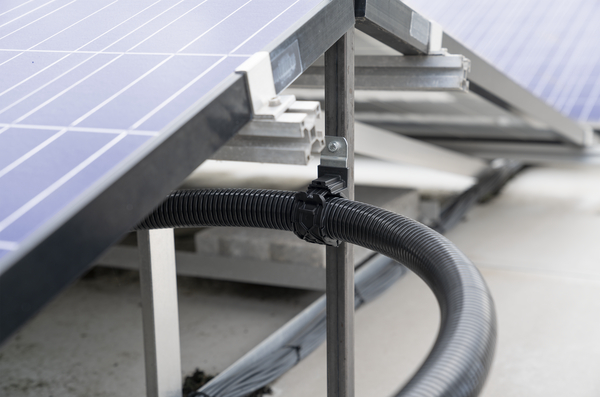

    ???product.application??? Lightweight and flexible with added UV protection. To be used in applications with high levels of UV exposure and also to protect cables from crush damage.
    Colour Black (BK)
    Description Protective Tubing
    Local order number FCTUV19S
    Material Polyamide 6, UV-stabilised (PA6UV)
    PART DESCRIPTION FCTUV19S-PA6UV-BK
    Pack Cont. 50m
    Package Content packed in Coil
    Product Family UV stabilized corrugated tubing
    Product Group FCT UV Stabilized Convoluted Tubing- Slit Version
    Type FCTUV19S

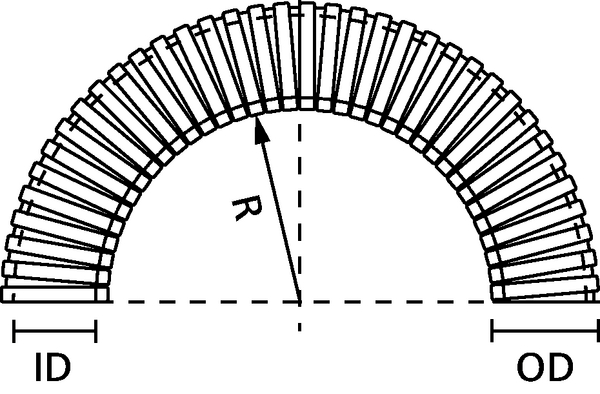

    Inner Diameter D (Imperial) 0.77"
    Inside ⌀ (ID) 19.5mm
    Nominal ⌀ 19.5mm
    Outside ⌀ (OD) 23.5mm
    Outside ⌀ (OD) (imperial) 0.93"
    Wall (WT) 0.45mm
    Wall (WT) (imperial) 0.017"
    Flammability UL 94 HB
    Halogen-free Yes
    Operating Temperature -40 °C to +125 °C
    ROHS compliant Yes
    Specifications
    Country of Origin GB
    Customs Number 39173200
    GTIN-13 / EAN 5022660182181
    Packaging 1 - Height (m) 0.22m
    Packaging 1 - Length (m) 0.53m
    Packaging 1 - Qty 50
    Packaging 1 - Type Reel
    Packaging 1 - Volume (m³) 0.0618m³
    Packaging 1 - Weight (kg) 1.4kg
    Packaging 1 - Width (m) 0.53m
    Reel Length 50m
    ETIM 7.0 Key EC001175
    ETIM 8.0 Key EC001175
    ETIM 9.0 Key EC001175
    UNSPSC Key 39131601
