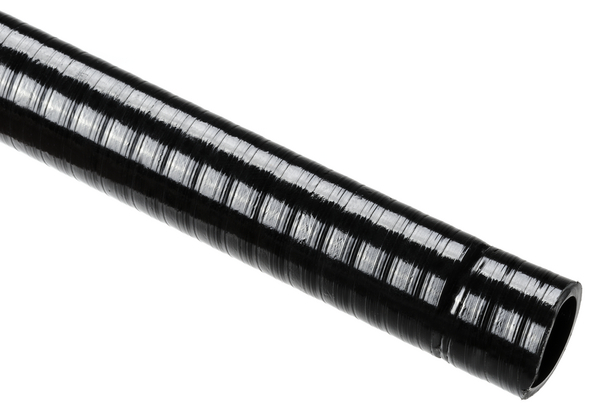

LPC0380-PVC-BK
Art.-No. 166-90247 | LPC0380-PVC-BK |  Details

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Colour Black (BK)
    Local order number 166-90247
    Material Polyvinylchloride (PVC)
    PART DESCRIPTION LPC0380-PVC-BK
    Pack Cont. 30.5m
    Package Content packed in Reel
    Type LPC0380
    Bending Radius (imperial) 1.97"
    Bending Radius min. (R) 50mm
    Inner Diameter D (Imperial) 0.47"
    Inside Ø (ID) 12mm
    Length (L) 30.5m
    Nominal ∅ 16mm
    Nominal ∅ (imperial) 0.38"
    Outside Ø (OD) 17.8mm
    Outside ∅ (OD) (imperial) 0.70"
    CSA Certified No
    Flammability EN IEC 61386-1
    Halogen-free No
    Operating Temperature -5 °C to +70 °C
    ROHS compliant Yes
    Self extinguishing Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    Country of Origin GB
    GTIN-13 / EAN 4031026485041
    UNSPSC Key 39131601
    Cable protection conduits Cable protection conduits

    Cable Protection Conduits

    Perfect cable protection with flexible conduits and fittings, braided sleeving, spiral binding and cable protection tubing ...

    Cable Protection Conduits >
