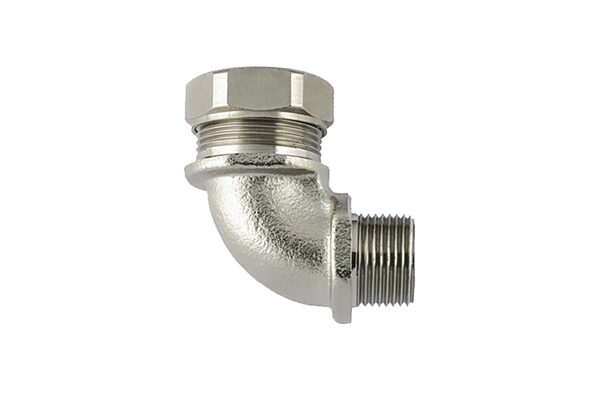

90° Compression Fitting with rigid External Thread for Spiral-Reinforced PVC Conduits ø32mm M32
Art.-No. 166-41404
| PSRSC32-90FMCSS-M32-SS316/PA6-ML
|
Details
- Multipart 90° stainless steel (SS316) compression fitting including elastomeric seal
- Can be used for knockouts or threaded entries as fitting rotates until tightened
- Fits PSRSC conduits
Request your individual offer now
Request quote
More products in this product group:
| Application | 90° fitting, fixed external thread, stainless steel (SS316). Fulfils IP66, IP67, IP68 and IP69k with PSRSC conduits. |
| Colour | Metal (ML) |
| Material | Stainless Steel (SS316), Polyamide 6 (PA6) |
| PART DESCRIPTION | PSRSC32-90FMCSS-M32-SS316/PA6-ML |
| Pack Cont. | 1pc. |
| Package Content packed in | Bag |
| Product Family | PSRSC-90FMCSS 90° compression fitting |
| Product Group | Fittings for spiral-reinforced PVC Conduits |
| Short Description | 90° Compression Fitting with rigid External Thread for Spiral-Reinforced PVC Conduits ø32mm M32 |
| Type | PSRSC32-90FMCSS-M32 |
| Type of connection | Thread |
| Variant | 90°-elbow |
Download
|
|
|
| Country of Origin | GB |
| Customs Number | 73072910 |
| GTIN-13 / EAN | 4031026411149 |
| Packaging 1 - Height (m) | 0.04m |
| Packaging 1 - Length (m) | 0.23m |
| Packaging 1 - Qty | 1 |
| Packaging 1 - Type | Bag |
| Packaging 1 - Volume (m³) | 0.00147m³ |
| Packaging 1 - Weight (kg) | 0.263001kg |
| Packaging 1 - Width (m) | 0.16m |
| Packaging 2 - Height (m) | 0.216m |
| Packaging 2 - Length (m) | 0.3048m |
| Packaging 2 - Type | Carton |
| Packaging 2 - Volume (m³) | 0.0176m³ |
| Packaging 2 - Width (m) | 0.267m |
