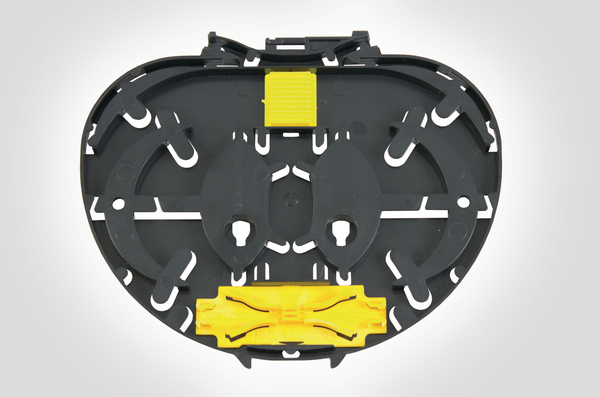

SE-B-IR Splice Trays with ANT Splitter Splice Bridges
Art.-No. 857-40429
| TRAY-BK-SE-B-IR-SP/ANT-06
|
Details
- Positive fibre management minimum bend radius 30mm
- 2 fibre entry ports
- Supplied with ANT and splitter/ANT bridge inserts
- Black tray colour provides high contrast to standard fibre management trays
- Maximum splice capacity of 14 fibres (heatshrink/3A)
Request your individual offer now
Request quote
More products in this product group:
| Colour | Black (BK) |
| Material | Acrylonitrile Butadiene Styrene (ABS) |
| PART DESCRIPTION | TRAY-BK-SE-B-IR-SP/ANT-06 |
| Pack Cont. | 6pcs. |
| Product Family | IR Single Element Splitter SE-B |
| Product Group | Integrated Routing Fibre Optic Splice Tray |
| Qty Trays | 6 |
| Short Description | SE-B-IR Splice Trays with ANT Splitter Splice Bridges |

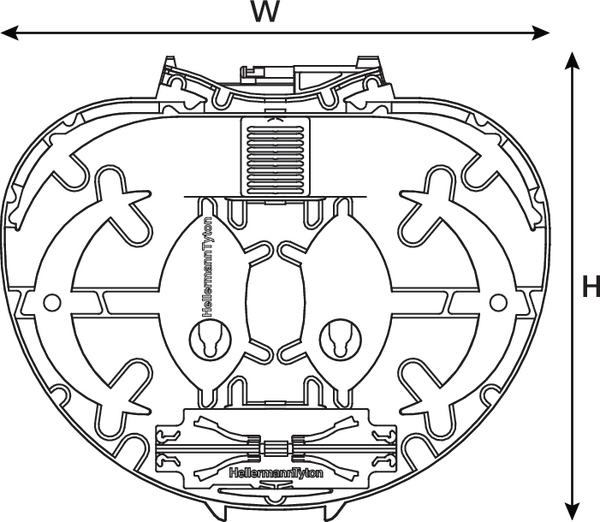

| Technical Description | The Integrated Routing (IR) single element splitter tray is manufactured from black ABS and finished to a high specification to eliminate the risk of snagging or microbends. All retaining tabs on the tray have radius edges and rounded corners where fibre may pass. The overall dimensions of the tray are 148 x 125 x 7mm. The IR single element splitter tray is supplied with an optical splitter/ANT splice bridge at the front, which will accommodate 2 x 60 x 7 x 4mm optical splitters, and a ANT bridge at the rear. The maximum splice capacity of the tray is 14 fibres based on 14 double stacked heatshrink (3A) splice protectors up to 60mm long. The IR single element splitter trays is suitable for use in the UFC-IR, FDN-IR and FML-IR closures and IR enclosures. |
| Type | TRAY-BK-SE-B-IR-SP/ANT-06 |
| Type of Tray | Integrated Routing SE/BK |
