Hellamass Large Splice Tray with ANT Splice Bridges
Art.-No. 857-40303
| TRAY-HL-ANT-01
|
Details
- Bend radius of 37.5mm
- 4 large fibre entry ports
- Ports allow fibre entry and exit from the same side
- Facilitates fibre route reversal
- Optical splitter accommodation up to a maximum of 70 x 20 x 60mm
- Fibre storage area on reverse side
- Different splice protector holder options allow for a splice type of up to 60mm in length
- Maximum splice capacity of 144 fibres
Request your individual offer now
Request quote
More products in this product group:
| Content | 2 x Hellamass Large Trays, 24 x Crimp (ANT) splice protector holders |
| PART DESCRIPTION | TRAY-HL-ANT-01 |
| Package Content packed in | Bag |
| Product Family | Hellamass Large |
| Product Group | Tubed Fibre Optic Splice Tray |
| Qty Trays | 1 |
| Short Description | Hellamass Large Splice Tray with ANT Splice Bridges |

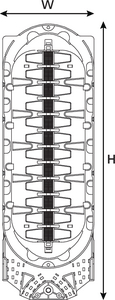

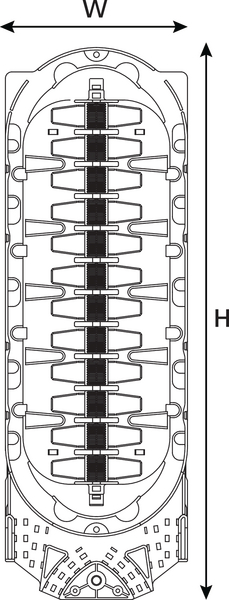

| Technical Description | The Hellamass Large is a rectangular double sided tray designed for high fibre count multiple applications which is manufactured from ABS and finished to a high specification to eliminate the risk of snagging or microbends. All retaining tabs on the tray have radius edges and rounded corners where fibre may pass. The tray is supplied with 2 clear plastic cover plates and is mounted using a single pivot point on to a flexible hinge. The overall dimensions of the tray are 440 x 145 x 19mm and the maximum splice capacity of 144 fibres is based on 12 heatshrink 3A splice protector holders fitted to each side of the tray. The Hellamass large tray it is suitable for use in the FML and UFC tubed closures as well as rack mounted applications. |
| Type | TRAY-HL-ANT-01 |
| Type of Tray | Hellamas Large |
