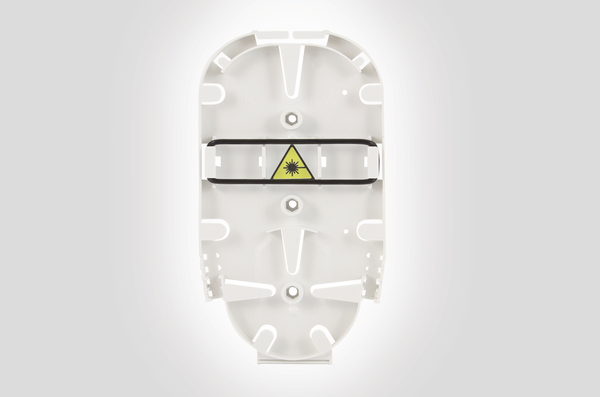

Hellapon Small Splice Tray with Moulded Splice Fins
Art.-No. 857-40277
| TRAY-HS-01
|
Details
- Bend radius 30mm
- 2 fibre entry ports
- 2 mounting positions for splice protector inserts
- Option for optical splitter/3A or ANT splice bridge
- Optical splitter accommodation up to a maximum of 70 x 20 x 6mm
- Back to back mounting capability allows routing of fibre between trays
- Maximum splice capacity of 24 fibres
- Splice retaining strap
Request your individual offer now
Request quote
More products in this product group:
| Content | 1 x Hellapon Small Trays |
| PART DESCRIPTION | TRAY-HS-01 |
| Package Content packed in | Bag |
| Product Family | Hellapon Small |
| Product Group | Tubed Fibre Optic Splice Tray |
| Qty Trays | 1 |
| Short Description | Hellapon Small Splice Tray with Moulded Splice Fins |

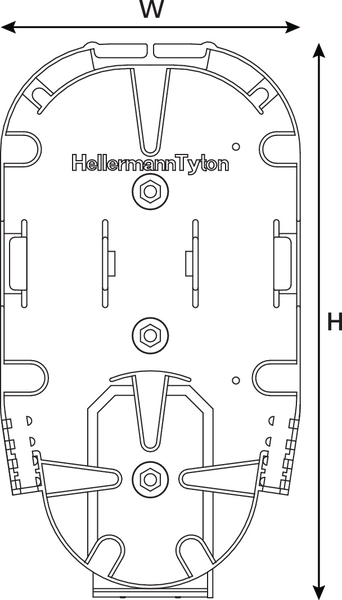

| Technical Description | The Hellapon small tray is manufactured from ABS and finished to a high specification to eliminate the risk of snagging or microbends. All retaining tabs on the tray have radius edges and rounded corners where fibre may pass. The overall dimensions of the tray are 158 x 85 x 9mm and the maximum splice capacity of 24 fibres is based on 24 double stacked heatshrink 3A splice protectors up to 60mm long. The Hellapon small tray accepts a wide range of splice protectors and can accommodate 2 x 60 x 70 x 4mm optical splitters when using the optional splitter/3A or ANT splice bridge. A single optical splitter up to a maximum of 70 x 20 x 6mm can be fitted into the tray in place of a splice bridge. The tray can be mounted either on a fixed support or flexible end mounted hinge and is suitable for use in the FST and FRBU tubed closures. |
| Type | TRAY-HS-01 |
| Type of Tray | Hellapon Small |
