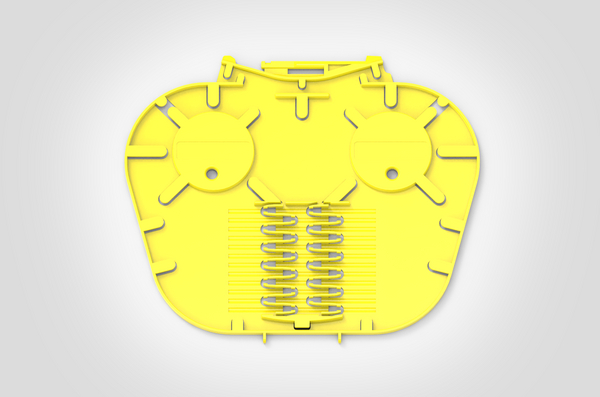

Compact IR SC 3A Splice Trays
Art.-No. 857-41106
| TRAY-SC-B-CFNIR-YL-3A-06
|
Details
- Positive fibre management - minimum bend radius 15mm
- 2 fibre entry ports
- Moulded splice holder fins splice protectors
- Maximum splice capacity of 12 fibres
Request your individual offer now
Request quote
More products in this product group:
| Colour | Yellow (YE) |
| Content | CFNIR Compact Single Circuit 3A Trays - Yellow (6) |
| Material | Acrylonitrile Butadiene Styrene (ABS) |
| PART DESCRIPTION | TRAY-SC-B-CFNIR-YL-3A-06 |
| Pack Cont. | 6 |
| Product Family | Compact IR Single Element SC |
| Product Group | CFNIR Fibre Optic Splice Tray |
| Qty Trays | 6 |
| Short Description | Compact IR SC 3A Splice Trays |
| Splice Capacity | 12 |
| Technical Description | The Compact Integrated Routing (IR) single circuit tray is manufactured from ABS and finished to a high specification to eliminate the risk of snagging or microbends. All retaining tabs on the tray have radius edges and rounded corners where fibre may pass. The overall dimensions of the tray are 150 x 134 x 3.5mm. The single circuit tray has moulded splice protector holders which are positioned at the front of the tray for ease of measurement and installation. The maximum splice capacity of the tray is based on 12 x 3A splice protectors upto 60mm long. The Compact IR single circuit tray is suitable for use in the CFNIR closure. |
| Type | TRAY-SC-B-CFNIR-YL-3A-06 |
| Type of Tray | Compact SC-B |
Download
TRAY-SC-B-CFNIR-3A-06
857-40913
TRAY-SC-B-CFNIR-BK-3A-06
857-41102
TRAY-SC-B-CFNIR-BL-3A-06
857-41103
TRAY-SC-B-CFNIR-GN-3A-06
857-41104
TRAY-SC-B-CFNIR-RD-3A-06
857-41105
TRAY-SC-B-CFNIR-ANT-06
857-40921
TRAY-SC-B-CFNIR-BK-ANT-06
857-41107
TRAY-SC-B-CFNIR-BL-ANT-06
857-41108
TRAY-SC-B-CFNIR-GN-ANT-06
857-41109
TRAY-SC-B-CFNIR-RD-ANT-06
857-41110
TRAY-SC-B-CFNIR-YL-ANT-06
857-41111
