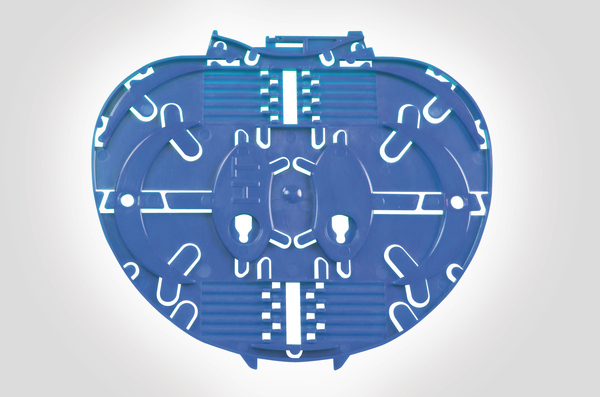

SC-B-IR Splice Trays with 12 3A Moulded Splice Holder Fins
Art.-No. 857-40499
| TRAY-SC-B-IR-BL-2X3A-12
|
Details
- Positive fibre management minimum bend radius 30mm
- 2 fibre entry ports
- Moulded splice holder fins for heatshrink (3A) or Crimp (ANT) splice protectors
- Maximum splice capacity of 12 fibres
Request your individual offer now
Request quote
More products in this product group:
| Colour | Blue (BU) |
| Content | 12 x IR Single Circuit Blue SC-B Heatshrink (3A) Trays |
| Material | Acrylonitrile Butadiene Styrene (ABS) |
| PART DESCRIPTION | TRAY-SC-B-IR-BL-2X3A-12 |
| Pack Cont. | 12pcs. |
| Package Content packed in | Bag |
| Product Family | IR Single Circuit SC-B |
| Product Group | Integrated Routing Fibre Optic Splice Tray |
| Qty Trays | 12 |
| Short Description | SC-B-IR Splice Trays with 12 3A Moulded Splice Holder Fins |
| Technical Description | The Integrated Routing (IR) single circuit SC-B trays is manufactured from ABS and finished to a high specification to eliminate the risk of snagging or microbends. All retaining tabs on the tray have radius edges and rounded corners where fibre may pass. The overall dimensions of the tray are 148 x 125 x3.5mm. The tray accepts 3A splice protectors. The IR single circuit SC-B tray is suitable for use in the UFC-IR, FDN-IR and FML-IR closures as well as the IR enclosure range. |
| Type | TRAY-SC-B-IR-BL-2X3A-12 |
| Type of Tray | Integrated Routing SC-B |
Download
TRAY-SC-B-IR-2X3A-12
857-40335
TRAY-SC-B-IR-2XANT-12
857-40336
TRAY-SC-B-IR-BK-2X3A-12
857-40498
TRAY-SC-B-IR-GN-2X3A-12
857-40500
TRAY-SC-B-IR-RD-2X3A-12
857-40501
TRAY-SC-B-IR-YL-2X3A-12
857-40502
