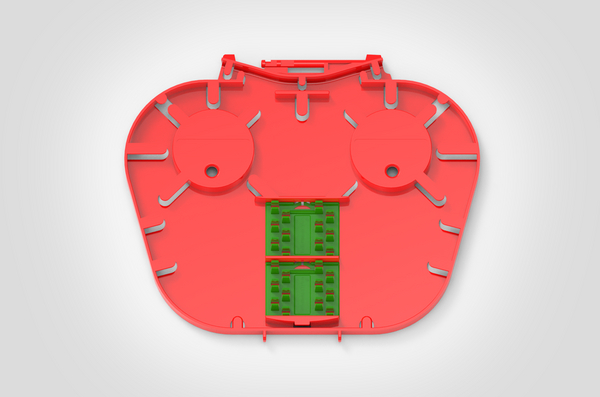

Compact IR SE 3A Splice Trays
Art.-No. 857-41095
| TRAY-SE-CFNIR-RD-3A-03
|
Details
- Positive fibre management - minimum bend radius 15mm
- 2 fibre entry ports
- 2 x 3A splice protector holders
- Maximum splice capacity of 24 fibres (double stacked)
- Optical splitter accommodation upto 60 x 7 x 4mm
Request your individual offer now
Request quote
More products in this product group:
| Colour | Red (RD) |
| Content |
CFNIR Compact Single Element Trays - Red (3) 3A Splice Protector Holders (6) |
| Material | Acrylonitrile Butadiene Styrene (ABS) |
| PART DESCRIPTION | TRAY-SE-CFNIR-RD-3A-03 |
| Pack Cont. | 3 |
| Package Content packed in | Bag |
| Product Family | Compact IR Single Element SE |
| Product Group | CFNIR Fibre Optic Splice Tray |
| Qty Trays | 3 |
| Short Description | Compact IR SE 3A Splice Trays |
| Splice Capacity | 12 |
| Technical Description | The Compact Integrated Routing (IR) single element tray is manufactured from ABS and finished to a high specification to eliminate the risk of snagging or microbends. All retaining tabs on the tray have radius edges and rounded corners where fibre may pass. The overall dimensions of the tray are 150 x 134 x7mm. The single element tray is fitted with 2 x 3A splice protector holders which are positioned at the front of the tray for ease of measurement and installation. The maximum splice capacity of the tray is based on 24 double stacked 3A splice protectors upto 60mm long. The Compact IR single element tray is suitable for use in the CFNIR closure. |
| Type | TRAY-SE-CFNIR-RD-3A-03 |
| Type of Tray | Compact SE |
