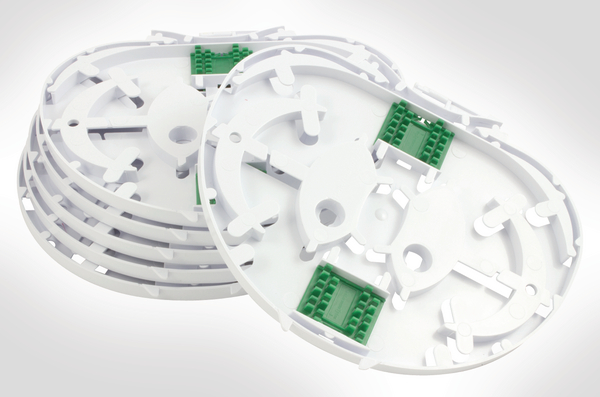

SE-IR Splice Trays with 3A Splice Bridges
Art.-No. 857-40257
| TRAY-SE-IR-2X3A-06
|
Details
- Positive fibre management - minimum bend radius 30mm
- 2 fibre entry ports
- 2 mounting positions for splice inserts
- Option for optical splitter/3A or ANT splice bridge
- Optical splitter accommodation up to a maximum of 60 x 7 x 4mm
- Maximum splice capacity of 24 fibres (double stacked)
- Different splice bridge options allow for a splice type of up to 60mm
Request your individual offer now
Request quote
More products in this product group:
| Colour | White (WH) |
| Content | 6 x IR Single Element trays, 12 x Heatshrink (3A) splice protector holders |
| Material | Acrylonitrile Butadiene Styrene (ABS) |
| PART DESCRIPTION | TRAY-SE-IR-2X3A-06 |
| Pack Cont. | 6pcs. |
| Package Content packed in | Bag |
| Product Family | IR Single Element SE |
| Product Group | Integrated Routing Fibre Optic Splice Tray |
| Qty Trays | 6 |
| Short Description | SE-IR Splice Trays with 3A Splice Bridges |

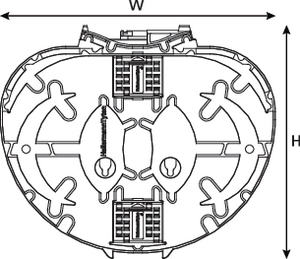

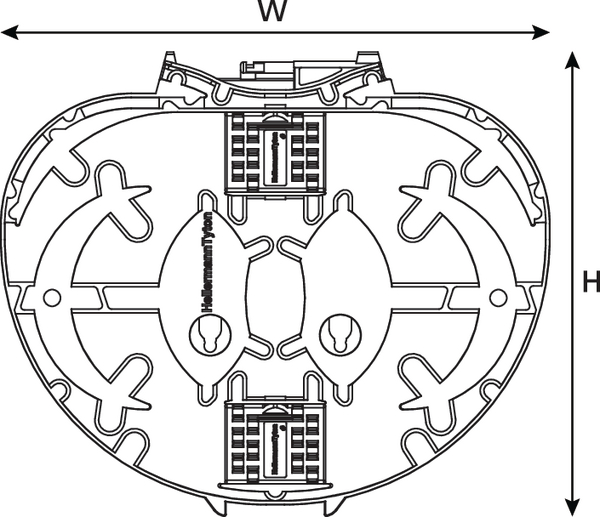

| Technical Description | The Integrated Routing (IR) single element tray is manufactured from ABS and finished to a high specification to eliminate the risk of snagging or microbends. All retaining tabs on the tray have radius edges and rounded corners where fibre may pass. The overall dimensions of the tray are 148 x 125 x 7mm. The IR single element tray accepts a wide range of splice protector inserts and the maximum splice capacity of the tray is based on 24 double stacked heatshrink (3A) splice protectors up to 60mm long. The IR single element tray can accommodate 2 x 60 x 7 x 4mm optical splitters when using the optional splitter/3A or ANT splice bridge. A single optical splitter up to a maximum of 60 x 7 x 4mm can be fitted into the tray in place of a splice bridge. The IR single element tray is suitable for use in the UFC-IR, FDN-IR or FML-IR closures. |
| Type | TRAY-SE-IR-2X3A-06 |
| Type of Tray | Integrated Routing SE |
