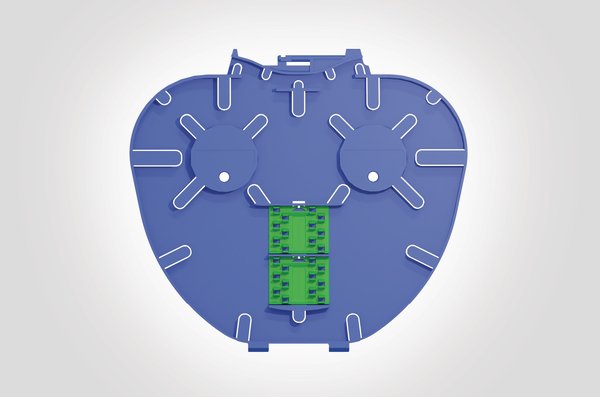

SE-MKII-IR Splice Trays with 3A Splice Bridges
Art.-No. 857-40640
| TRAY-SE-MKII-IR-BL-2X3A-06
|
Details
- Positive fibre management - minimum bend radius 15mm
- 2 fibre entry ports
- 2 mounting positions for splice inserts fitted with 3A splice holders
- Maximum splice capacity of 24 fibres (double stacked)
Request your individual offer now
Request quote
More products in this product group:
| Colour | Blue (BU) |
| Content | 6 x Blue IR Single Element MKII Trays, 12 x Heatshrink (3A) splice protector holders |
| Material | Acrylonitrile Butadiene Styrene (ABS) |
| PART DESCRIPTION | TRAY-SE-MKII-IR-BL-2X3A-06 |
| Pack Cont. | 6pcs. |
| Package Content packed in | Bag |
| Product Family | IR Single Element SE MKII |
| Product Group | Integrated Routing Fibre Optic Splice Tray |
| Qty Trays | 6 |
| Short Description | SE-MKII-IR Splice Trays with 3A Splice Bridges |

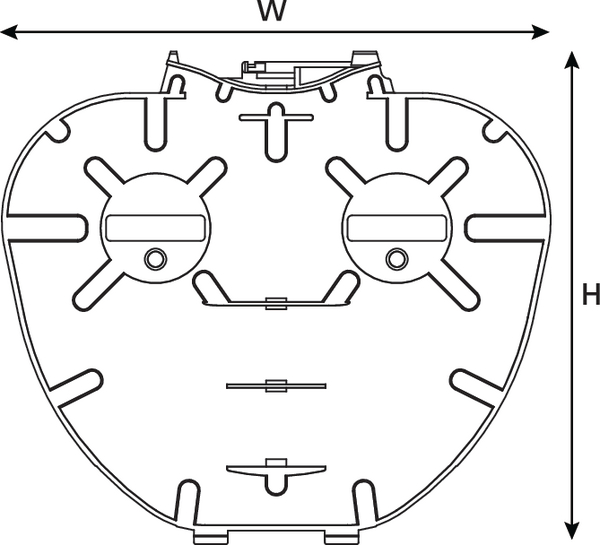

| Technical Description | The Integrated Routing (IR) single element tray is manufactured from ABS and finished to a high specification to eliminate the risk of snagging or microbends. All retaining tabs on the tray have radius edges and rounded corners where fibre may pass. The overall dimensions of the tray are 150 x 124 x 7mm. The IR single element tray is fitted with 2 x 3A splice protector holders at the front of the tray for ease of fibre measurement and installation. The maximum splice capacity of the tray is based on 24 double stacked heatshrink (3A) splice protectors up to 60mm long. The IR single element tray is suitable for use in the UFC-IR, FDN-IR or FML-IR closures. |
| Type | TRAY-SE-MKII-IR-BL-2X3A-06 |
| Type of Tray | Integrated Routing SE MKII |
