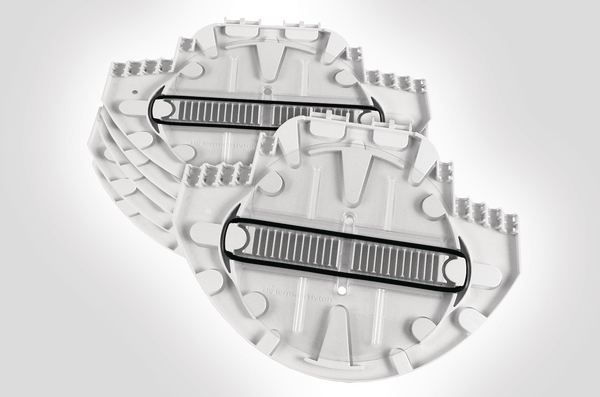

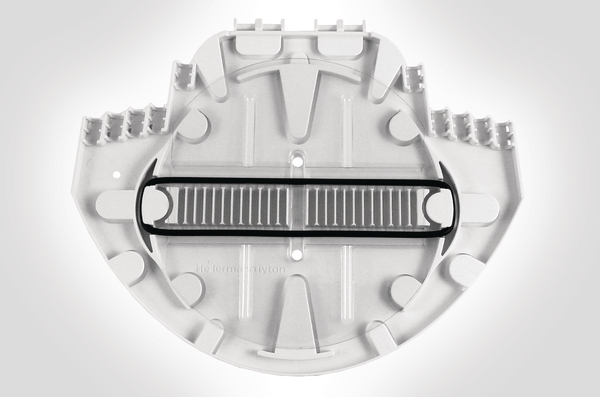

Hellipse SMF SE-B Splice Trays with Moulded Splice Holder Fins
Art.-No. 857-40281
| TRAY-SMF-SE-B-06
|
Details
- Bend radius 30mm
- 10 fibre entry ports
- Moulded splice protector holder which accepts 3A (heatshrink) splice inserts
- Splice retaining strap
- Maximum splice capacity of 24 fibres
Request your individual offer now
Request quote
More products in this product group:
| Content | 6 x Hellipse NZDF SMF-SE-B Heathsrink (3A) moulded splice protector holders |
| PART DESCRIPTION | TRAY-SMF-SE-B-06 |
| Package Content packed in | Bag |
| Product Family | Hellipse SMF SE-B |
| Product Group | Tubed Fibre Optic Splice Tray |
| Qty Trays | 6 |
| Short Description | Hellipse SMF SE-B Splice Trays with Moulded Splice Holder Fins |

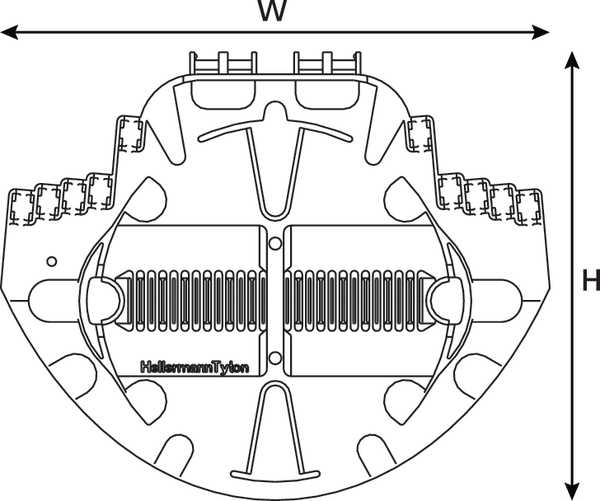

| Technical Description | The Hellipse NZDF SMF SE-B is an elliptical tray designed for single element applications which is manufactured from ABS and finished to a high specification to eliminate the risk of snagging or microbends. All retaining tabs on the tray have radius edges and rounded corners where fibre may pass. The overall dimensions of the tray are 182 x 148 x 7mm and the maximum splice capacity of 24 fibres is based on 24 heatshrink 3A splice protectors up to 45mm long. The Hellipse NZDF SMF SE-B tray has moulded splice protector holders which accept a 3A (heatshrink) splice insert and is suitable for use in the FML tubed closure. |
| Type | TRAY-SMF-SE-B-06 |
| Type of Tray | Hellipse SMF SE-B |
