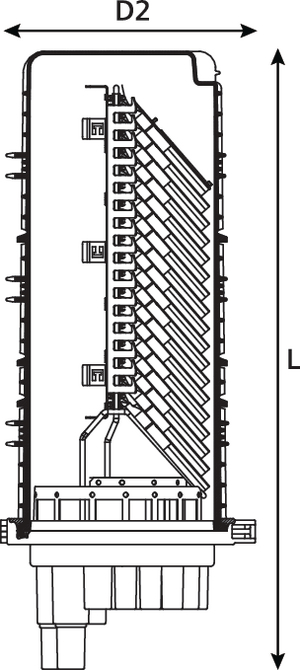

UFC C length tubed closure with 18 x multi-ribbon trays
Art.-No. 857-00982
| UFCTB-CXRCR67
|
Details
- Maximum 216 (8 or 12 fibre) ribbon cable splice capacity
- 28 round ports and 2 oval ports
- Supplied with 18 x Multi Ribbon Trays
- Maximum of 12 (8 or 12) ribbon cable splices per tray
- Fibre storage basket for loop through applications supplied as standard
- Cablelok compatible for all port sizes
- Quick release cover
- Optional flash test valve and/or grounding feed-through
Request your individual offer now
Request quote
More products in this product group:
| Colour | Black (BK) |
| Content |
UFC Base Anchor Rings (Inner and Outer) C-Length Cover (Dome) Quick Release Clamp Sealing ‘O’ Ring Fibre Storage Basket 18 x Multi-Ribbon Trays Tray Support Frame Anchor Fixing Kit (3) Tray Tool Hook and Loop Securing Straps Isopropyl Alcohol Wipes Desiccant Installation Guide |
| Cover Type | C |
| Method of Sealing | Cablelok |
| PART DESCRIPTION | UFCTB-CXRCR67 |
| Package Content packed in | kit |
| Port | L, LM, T, S, B |
| Port count | 1, 1, 2, 10, 16 |
| Product Family | C Length with Multi-Ribbon Tray with Basket |
| Product Group | UFC Tubed Closure |
| Qty Trays | 18 |
| Short Description | UFC C length tubed closure with 18 x multi-ribbon trays |
| Splice Capacity | 216 |

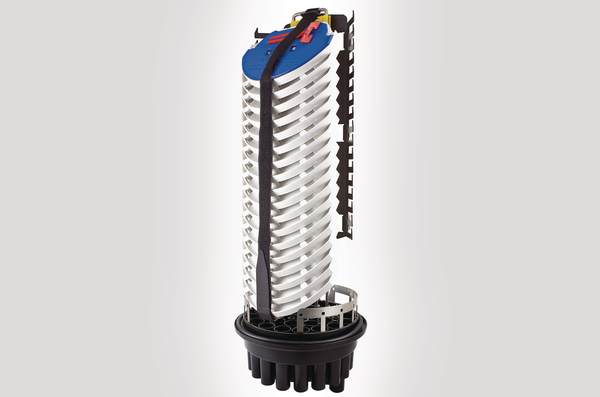

| Technical Description | The UFC C length single stack closure is available with Cablelok (Polypropylene) or Heatshrink (Flame Retardant Polypropylene) base. The base configuration of 28 round ports and 2 oval ports covers a cable diameter range of 4.0 – 29.0mm when using Cablelok mechanical seals and 6.0 – 35.0mm when using heatshrink. The mounting system is manufactured from Grade 304 stainless steel and manages 18 Multi-Ribbon cable trays giving a maximum splice capacity of 216 (8 or 12 fibre) ribbon cables based on 12 ribbon cable splices per tray. The tubed closure and position of the mounting system allows for ease of access and traceability of the fibre on to the trays. The trays are white with a clear cover which makes it easy to see the colour of the fibre elements as they are routed through the fibre management system and on to the trays. The Multi-Ribbon tray can also accommodate 3A splices when used with the appropriate tubefix connectors and transport tubing (See Chapter 13 – Accessories). |
| Type | UFCTB-CXRCR67 |
| Type of Tray | Multi-Ribbon |
