22/12/2024

Label, yellow, "C", 38.00x6.40mm, 900pcs.
Art.-No. 592-12003 | CWML-C-260-YE |  Details

Cotton fabric labels for permanent identification will adhere to most surfaces.

    • Cotton fabric identification labels
    • Optimum adhesion even on difficult surfaces
    • Also suitable for uneven surfaces
    • Supplied on handy cards
    • Removable adhesive
    • Suitable for permanent and temporary identification
    Show more
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads Datasheet

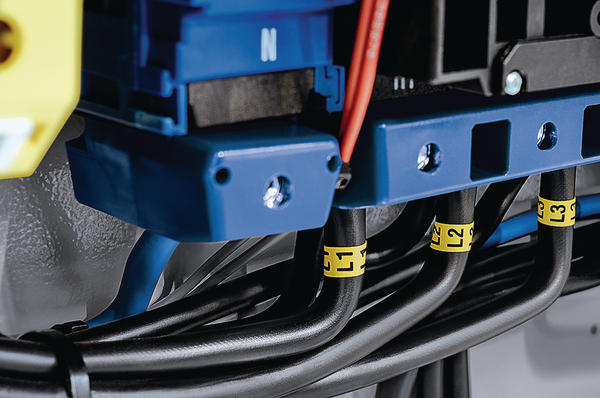

    Application For use as markers or tags on cables with very small diameters. Ideal for on-site installation.
    Cable ∅ min 0.00mm
    Chem. Material Properties resistant to oils, water and solvents
    Colour Yellow (YE)
    Fixation Method Pasting / Stick
    Local order number CWML-C-260-YE
    Marking Text C
    Material Type 260, Cotton cloth, yellow with black print (260)
    PART DESCRIPTION CWML-C-260-YE
    Pack Cont. 900pcs.
    Package Content packed in Pack
    Short Description Symbols and wire markers 6.4x38 yellow marking text C
    Type CWML-C
    Variant Card form
    With label space Yes
    Bundle Diameter max (metric) 9.50mm
    Bundle ∅ 2.50-9.50mm
    Bundle ∅ min. 2.50mm
    Height (H) 38.00mm
    Outside ∅ max (OD max.) 9.50mm
    Outside ∅ min. (OD min.) 0.00mm
    Thickness (T) 150.0µm
    Thickness of Foil 150
    Weight/Unit 0.000111kg
    Width (W) 6.40mm
    Adhesive Synthetic rubber
    Curing Temperature from +10 °C
    ELV compliant Dir. Art. 4 (2) YES
    Halogen-free No
    Hazardous Goods No
    Operating Temperature -29 °C to +80 °C
    Pre-Printed Yes
    ROHS compliant Yes
    Specifications
    Country of Origin DE
    Customs Number 58071090
    GTIN-13 / EAN 4031026172842
    Labels per Sheet 36pcs.
    Packaging 1 - Height (m) 0.005m
    Packaging 1 - Length (m) 0.25m
    Packaging 1 - Qty 900
    Packaging 1 - Type Bag
    Packaging 1 - Volume (m³) 0.00019m³
    Packaging 1 - Weight (kg) 0.100001kg
    Packaging 1 - Width (m) 0.15m
    Sheets per Pack 25pcs.
    ETIM 7.0 Key EC001530
    ETIM 8.0 Key EC001530
    ETIM 9.0 Key EC001530
