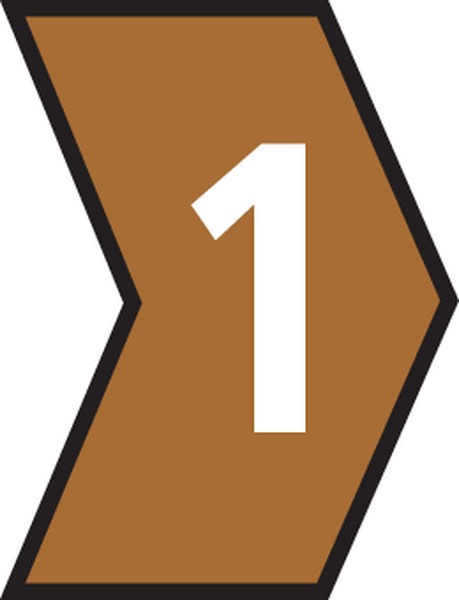

Cable marker, hotfoil print "1", ∅2.0-5.0mm, brown, reel=1000pcs.
Art.-No. 515-02611
| HGDC2-5 1-PVC-BN
|
Details
- Easily apply one size marker to wide range of cables
- Markers are applied before termination takes place
- Chevron cut to lock markers together ensuring text remains in place
- Traditional wire marking available in yellow, white and colour code
- Flexible material so product returns securely on the wire
- Applicator tool TJC available
Request your individual offer now
Request quote
More products in this product group:
| Application | Helagrip is used to mark cable and wire. Ideally suited to panel building, mass transit, utilities, telecommunications, and electrical contracting. Depending on marker size, the product is supplied either on a reel (HGDC) or in a plastic bag (HGBC). Markers are available as standard in international resistor colour code and yellow material marked in black. White material marked in black is available to special order. Characters are 0-9, A-Z, and standard electrical symbols. |
| Application Method | A text legend is made by threading required markers onto the wire by hand or by using an especially designed applicator tool. There is a choice of two applicator tools; a PTFE coated metal applicator tool (TJC) or a plastic applicator tool (AD). Both tools are ideal for pre-loading the required text legend. Simply slide the wire into the tool aperture and slide the markers onto the wire. Hand application is recommended for the LFH range. |
| Colour | Brown (BN) |
| Colour of Print | White (WH) |
| Fixation Method | Suspend |
| Local order number | MHG2-5CC 1 |
| Marking Text | 1 |
| Material | Flexible Polyvinyl Chloride, cadmium free (PVC) |
| PART DESCRIPTION | HGDC2-5 1-PVC-BN |
| Pack Cont. | 1000pcs. |
| Package Content packed in | Reel |
| Product Family | Helagrip, slide on, chevron cut, HGDC2-5 |
| Product Group | Pre-printed Cable Markers |
| Short Description | Slide-On Cable Marker Chevron Cut 2-5 mm brown Imprint 1 |
| Type | HGDC2-5 1 |
| Variant | Roller form |
| With label space | No |
Download
|
|
|
| Country of Origin | GB |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 5022660050466 |
| Packaging 1 - Height (m) | 0.009m |
| Packaging 1 - Length (m) | 0.16m |
| Packaging 1 - Qty | 1000 |
| Packaging 1 - Type | Reel |
| Packaging 1 - Volume (m³) | 0.00023m³ |
| Packaging 1 - Weight (kg) | 0.09kg |
| Packaging 1 - Width (m) | 0.16m |
| Packaging 2 - Height (m) | 0.216m |
| Packaging 2 - Length (m) | 0.3048m |
| Packaging 2 - Qty | 5000 |
| Packaging 2 - Type | Carton |
| Packaging 2 - Volume (m³) | 0.0176m³ |
| Packaging 2 - Weight (kg) | 0.53kg |
| Packaging 2 - Width (m) | 0.267m |
