Cable label, self laminating, red/transparent, manual marking, 12.70x12.70mm, H2=38.10mm, 240pcs.
Art.-No. 598-14021
| HSMB-C1-1402-CL/RD
|
Details

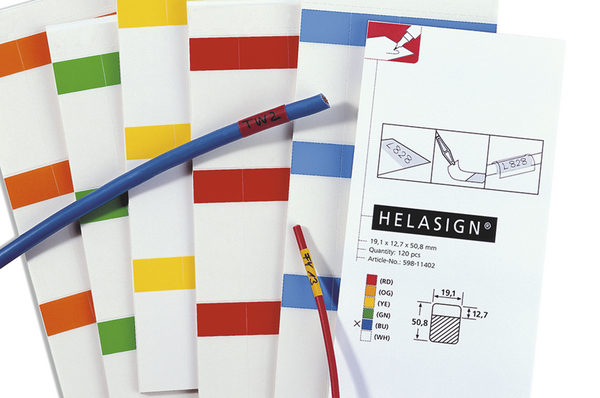

- Self-laminating labels supplied in handy pocket-sized booklets

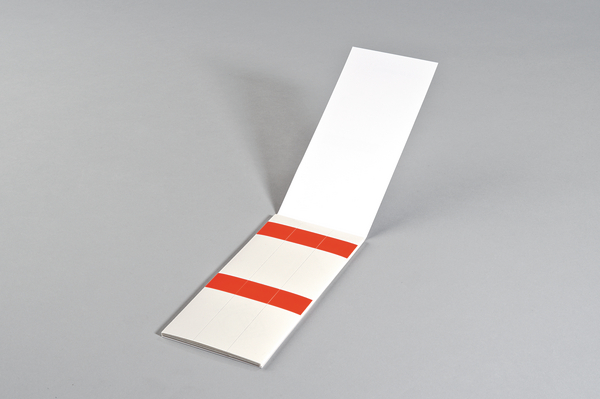

- Booklet cover protects labels when stored
- Ideal for low volume maintenance and repair work
- Easy to write on and dispense labels
- Laminating function gives excellent protection against humidity and mechanical abrasion

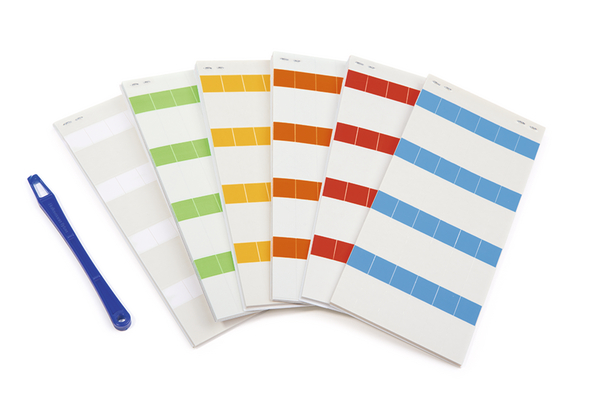

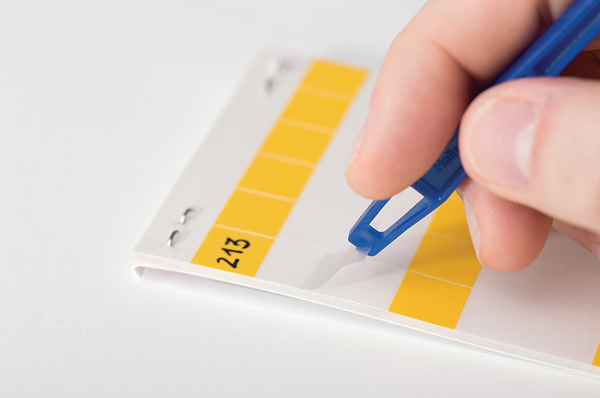

- Applicator tool for clean application enclosed

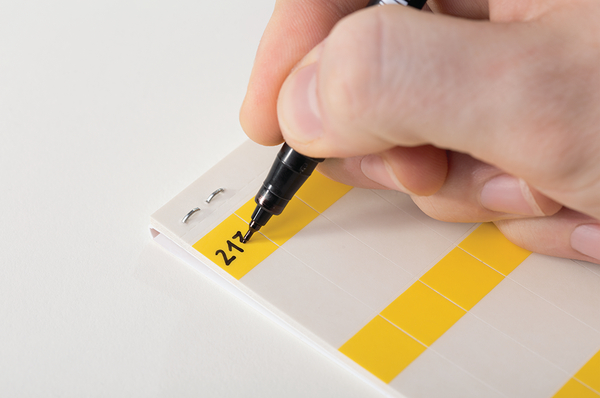

- Write text with specially formulated fast-drying ink T82 pens
Request your individual offer now
Request quote
More products in this product group:

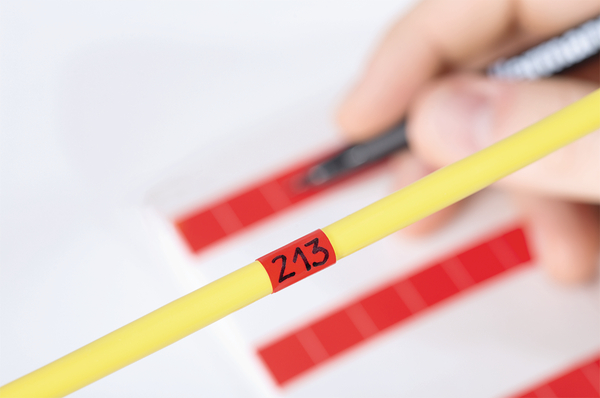

| Application | A quick and simple on-site solution, for either permanent or temporary marking of wires, cables and pipes. |
| Application Method | The functionality and durability of the labels can be negatively affected if improperly processed or applied. All surfaces to be bonded must be clean, dry as well as free from dust and grease. Avoid touching the adhesive surface of the label as this could impair the application performance. |
| Chem. Material Properties | Resistant to water, oil and many solvents. |
| Colour | Red (RD), Transparent (CL) |
| Colour Marking Field | Red (RD) |
| Local order number | HSMB-C2-1402-RDCL |
| Material | Type 1402, Vinyl (1402) |
| PART DESCRIPTION | HSMB-C1-1402-CL/RD |
| Pack Cont. | 240pcs. |
| Package Content packed in | Pack |
| Product Family | HELASIGN, Material 1402, Booklet |
| Product Group | Self-laminating labels, manual marking |
| Self adhesive (Yes/No) | Yes |
| Short Description | Self-laminating labels, manual marking, booklet, 12.70x12.70x38.10 mm, red-transparent |
| Type | HSMB-C1 |
| Variant | Adhesive label |
|
|
| Bundle Diameter max (metric) | 8.10mm |
| Bundle ∅ | 4.00-8.10mm |
| Bundle ∅ min. | 4.00mm |
| H printable | 12.70mm |
| Height (H) | 12.70mm |
| Height (H2) | 38.10mm |
| Outside ∅ max. (imperial) | .318" |
| Outside ∅ max (OD max.) | 8.10mm |
| Outside ∅ min. (OD min.) | 4.0mm |
| Outside ∅ min. (imperial) | .157" |
| Print Method | manual marking |
| Thickness (T) | 80.0µm |
| Thickness of Adhesive (TA) nom. | 27.5µm |
| Thickness of Foil | 80 |
| Thickness of foil test method | ASTM D3652-83 |
| Weight/Unit | 0.0002kg |
| Width (W) | 12.70mm |
| Width of Liner (WL) | 76.20mm |
Download
| Adhesive | Acrylic |
| Adhesive Operating Temperature | -40 °C to +80 °C |
| Curing Temperature | from +8 °C |
| ELV compliant Dir. Art. 4 (2) | YES |
| Halogen-free | No |
| Hazardous Goods | No |
| Initial tack | 110g/cm² |
| Initial tack | ASTM D2979-71 |
| Operating Temperature | -40 °C to +80 °C |
| Peel strength | 550 N/m |
| Peel strength test method | PSTC 7 |
| Pre-Printed | No |
| ROHS compliant | Yes |
| Shear strength | 120h |
| Shear strength test method | FINAT FTM 7 |
| Shelf Life | Minimum 1 year upon receipt / maximal 2 years after production date. |
| Specifications |
|
|
|
|
| Country of Origin | DE |
| Customs Number | 39199080 |
| GTIN-13 / EAN | 4031026295039 |
| Labels per Row | 6pcs. |
| Labels per Sheet | 24pcs. |
| Packaging 1 - Height (m) | 0.01m |
| Packaging 1 - Length (m) | 0.2m |
| Packaging 1 - Qty | 240 |
| Packaging 1 - Type | Bag |
| Packaging 1 - Volume (m³) | 0.00018m³ |
| Packaging 1 - Weight (kg) | 0.048072kg |
| Packaging 1 - Width (m) | 0.09m |
| Sheets per Pack | 10pcs. |
| Storage Temperature | +21 °C |
| Storage conditions | 50% relative humidity., The storage in the original packaging is recommended., Please avoid warehousing under impacts such as high humidity, heat and coldness. |
