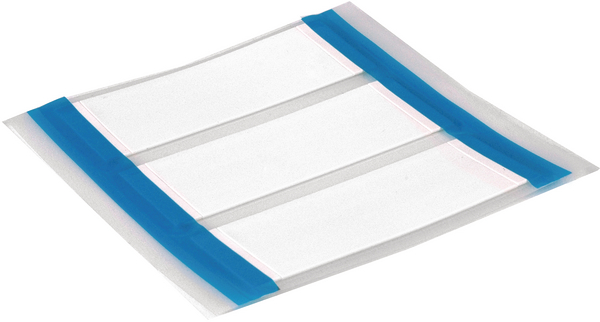

Heat shrink marker, thermal transfer print, ladder-style, 11.9mm/4.2mm, W=48.26mm, white, 250pcs.
Art.-No. 553-50029
| HST12-4WH-PO-X-WH
|
Details
- Slide Slit and optional center slits for easy wire insertion.
- Smooth surface for clean and legible printing.
- Supplied on a ladder style carrier so that markers can be kitted after printing.
- A 3:1 shrink ratio means fewer skews as each marker covers a wider range of wire diameters.
More products in this product group:
| Application | Shrinkable markers by thermal transfer. Ideal for applications where dialing cannot take up space or run on the cable. HellermannTyton ShrinkTrak Markers make it easy to identify wires, cables and other components. These markers are made with cuts in the side, which make it easy to apply to the cables. All ShrinkTrak labels are homologated for military use (American Standard). |
| Chem. Material Properties | Resistant to most solvents and chemicals when printed with the recommended HellermannTyton ribbon and printing system. |
| Colour | White (WH) |
| Local order number | HST12-4WH |
| Material | Polyolefin, cross-linked (PO-X) |
| Mech. Material Properties | Flexible, flame retardant heat shrinkable tubing with side slit for easy marker removal. |
| PART DESCRIPTION | HST12-4WH-PO-X-WH |
| Pack Cont. | 250pcs. |
| Package Content packed in | Box |
| Printable | Yes |
| Product Family | ShrinkTrak |
| Product Group | Shrinkable Wire Markers: "Ladder Style", thermal transfer |
| Short Description | Heat shrinkable tubing printable 19.55x48 mm, white |
| Shrink Ratio | 3:1 |
| Type | HST12-4WH |
| Variant | Thin-Wall |
| With inner glue (Yes/No) | No |
|
|
| Flexibility | Flexible |
| For AWG | 2-10 |
| H printable | 19.55mm |
| Height (H) | 19.55mm |
| Outside Ø (OD) | 12.7mm |
| Outside ∅ max. (imperial) | 0.5" |
| Outside ∅ (OD) (imperial) | 0.5" |
| Outside ∅ max (OD max.) | 12.7mm |
| Print Method | thermal transfer print |
| Recov. ∅ d | 4.2mm |
| Recov. ∅ d max. (imperial) | 0.166" |
| Supplied ∅ D | 11.9mm |
| Supplied ∅ D min. (imperial) | 0.47" |
| Thickness (T) | .0762mm |
| Wall (WT) | 0.84mm |
| Wall (WT) (imperial) | 0.033" |
| Weight/Unit | 0.002084kg |
| Width (W) | 48.26mm |
| Width of LIner (WL) (imperial) | 3.0" |
| Width of Liner (WL) | 76.2mm |
| Width printable | 48.26mm |
| Wire Size Range (mm²) | 0.166-0.47mm² |
| ∅ D max. | 9.53mm |
| ∅ D max. (imperial) | 0.375" |
| ∅ D min. | 241.81mm |
| ∅ D min. (imperial) | 9.52" |
Download
| Abrasion Resistance | Medium |
| CE Certification | No |
| CSA Certified | No |
| Dielectric Strength | 19.7kV/mm |
| ELV compliant Dir. Art. 4 (2) | YES |
| Flammability | UL 224 VW-1 |
| Halogen-free | No |
| Hazardous Goods | No |
| Minimum Shrink Temperature | +90 °C |
| Operating Temperature | -55 °C to +135 °C |
| ROHS compliant | Yes |
| Recommended Ribbon Type | TTDTHOUT, TTDTHOUTSM, TT822OUT, TT822OUTSM |
| Reel Variant | ladder-style |
| Solvent Resistance | Good |
| Specifications | SAE - AMS - DTL-23053/5 Class 1 and 3, SAE - AS81531, UL 224 125 °C 600V VW-1 |
| Specifications |
|
| UL Listed (US and Canada) | No |
| UL Listed (US and Canada) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US and Canada) | No |
| US Gov. Designation | SAE-AMS-DTL-23053/5 Class 1 and 3, MIL-STD-202G Method 215K, SAE-AS81531 |
| UV-Stabilised | No |
| Country of Origin | US |
| Customs Number | 39173200 |
| GTIN-13 / EAN | 4031026264448 |
| Labels per Column | 1 |
| Labels per Row | 1 |
| Markers per row | 1 |
| Packaging 1 - Height (m) | 0.18m |
| Packaging 1 - Length (m) | 0.18m |
| Packaging 1 - Qty | 250 |
| Packaging 1 - Type | Bag |
| Packaging 1 - Volume (m³) | 0.00343m³ |
| Packaging 1 - Weight (kg) | 0.521001kg |
| Packaging 1 - Width (m) | 0.106m |
| Packaging 3 - Height (m) | 0.32m |
| Packaging 3 - Length (m) | 0.39m |
| Packaging 3 - Qty | 3000 |
| Packaging 3 - Type | Carton |
| Packaging 3 - Volume (m³) | 0.0487m³ |
| Packaging 3 - Weight (kg) | 6.752kg |
| Packaging 3 - Width (m) | 0.39m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 48000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Weight (kg) | 129.032kg |
| Packaging 4 - Width (m) | 0.8m |
