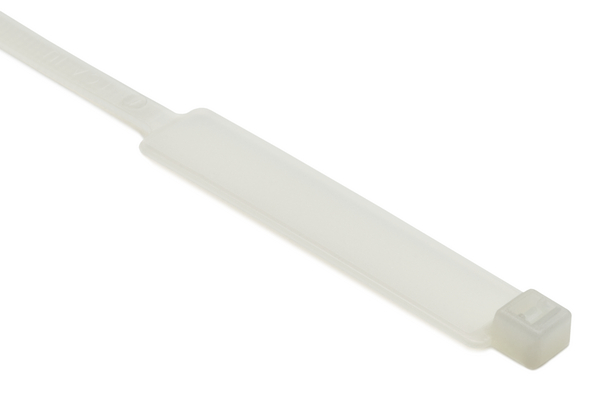

Identification cable tie, 203.2x28.0mm, ∅9.5-44.5mm, natural, 100pcs.
Art.-No. 111-85019
| IT50R-PA66-NA
|
Details
- Identification ties made of Polyamide 6.6
- For simple identification and securing of cable bundles in one step
- Printable labels are available for a professional finish
- Manual or temporary marking is possible with an indelible pen (T82S-BK / T82R-RD)
Request your individual offer now
Request quote
More products in this product group:
| Application | One of the major benefits is the ability to both secure and identify cable bundles at different times. |
| Application Method | Quick, simple fixing by hand or with HellermannTyton tensioning tools |
| Colour | Natural (NA) |
| Fixation Method | None |
| Identification Plate Position | attached to bundle |
| Material | Polyamide 6.6 (PA66) |
| PART DESCRIPTION | IT50R-PA66-NA |
| Pack Cont. | 100pcs. |
| Package Content packed in | Bag |
| Product Family | IT Ties |
| Product Group | Identification ties and plates for marking cable bundles |
| Recommended Labels | TAG23-10TD1 |
| Releasable Closure (Yes/No) | No |
| Short Description | Cable Tie with Marker Plate 203x4,6 natural |
| Tie Closure | plastic pawl |
| Type | IT50R |
| Variant | Inside Serrated |
| With label space | Yes |
|
|
| Bundle Diameter max (metric) | 44.5mm |
| Bundle ∅ | 9.5-44.5mm |
| Bundle ∅ min. | 9.5mm |

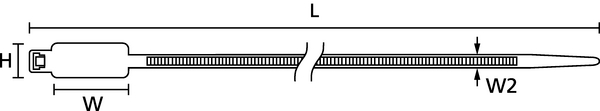

| H printable | 12.8mm |
| Height (H) | 12.9mm |
| Length (L) | 203.2mm |
| Min.Tensile Strength | 225N |
| Outside ∅ max. (imperial) | 1.73" |
| Outside ∅ max (OD max.) | 44.50mm |
| Outside ∅ min. (OD min.) | 9.50mm |
| Outside ∅ min. (imperial) | 0.37" |
| Print Method | manual marking |
| Thickness (T) | 1.2mm |
| Weight/Unit | 0.0015kg |
| Width (W) | 28.0mm |
| Width (W2) | 4.6mm |
| Width printable | 28.00mm |
Download
| CE Certification | Yes |
| CSA Certified | No |
| ELV compliant Dir. Art. 4 (2) | YES |
| Flammability | UL 94 V2 |
| Halogen-free | Yes |
| Hazardous Goods | No |
| Operating Temperature | -40 °C to +85 °C |
| ROHS compliant | Yes |
| Specifications |
|
| Specifications | ANSI/UL 1565, ANSI/UL 62275, ANSI/UL 746B, CAGE Code 53421 |
| UL Listed (US and Canada) | No |
| UL Listed (US and Canada) | No |
| UL OCD link | Link Link Link Link |
| UL Recognized (US and Canada) | Yes |
| UL Recognized (US and Canada) | Yes |
| UL Type | 11 |
| UL-File Number | E64139 |
| US Gov. Designation | MS3368-1-9A, Class 1, SAE-AS33681 |
| UV-Stabilised | No |
|
|
|
| Country of Origin | US |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4031026107196 |
| Packaging 1 - Height (m) | 0.03m |
| Packaging 1 - Length (m) | 0.28m |
| Packaging 1 - Qty | 100 |
| Packaging 1 - Type | Bag |
| Packaging 1 - Volume (m³) | 0.00118m³ |
| Packaging 1 - Weight (kg) | 0.170001kg |
| Packaging 1 - Width (m) | 0.14m |
| Packaging 3 - Height (m) | 0.2159m |
| Packaging 3 - Length (m) | 0.606425m |
| Packaging 3 - Qty | 5000 |
| Packaging 3 - Type | Box |
| Packaging 3 - Volume (m³) | 0.052m³ |
| Packaging 3 - Weight (kg) | 9.36005kg |
| Packaging 3 - Width (m) | 0.396875m |
| Packaging 4 - Height (m) | 1.224m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 75000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.175m³ |
| Packaging 4 - Weight (kg) | 161.4kg |
| Packaging 4 - Width (m) | 0.8m |
