SLP8 Marker-SI-GN
Art.-No. 606-00015 | SLP8 Marker-SI-GN |  Details

    • High elasticity of the material ensures many cable diameters can be covered with one size of marker
    • Can withstand up to 250° C intermittent temperature
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads Datasheet

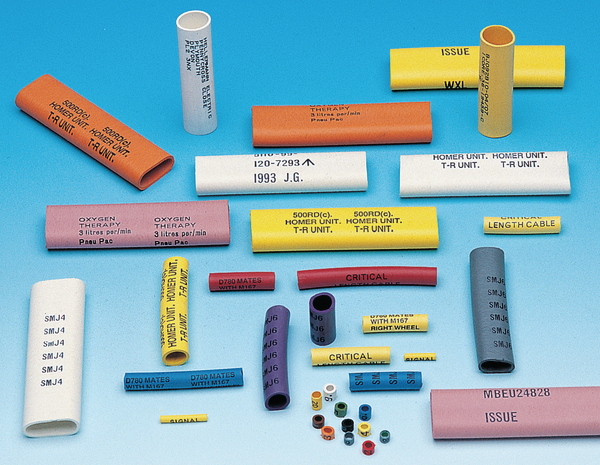

    Application The silicone markers (SLP) are halogen free and ideally suited to rigorous environments such as aerospace, mass transit and defence markets. As the material is highly elastic, it’s original size can be expanded 500% on application and 200% in continuous use. Markers are available in white or yellow material marked in black and international resistor colour coding. Characters are 0-9, A-Z and standard electrical symbols.
    Application Method Thread required markers onto the closed prongs. Expand the prongs and slide the wire into the marker opening. Close the prongs and hold the markers onto the wire and slide the tool away from the markers. It is advisable to use a little lubricant to help removal of tool from the wire due to the elastic tension inherent in these elastomeric markers.
    Colour Green (GN)
    Colour of Print Black (BK)
    Local order number MSLP8X3CC 5

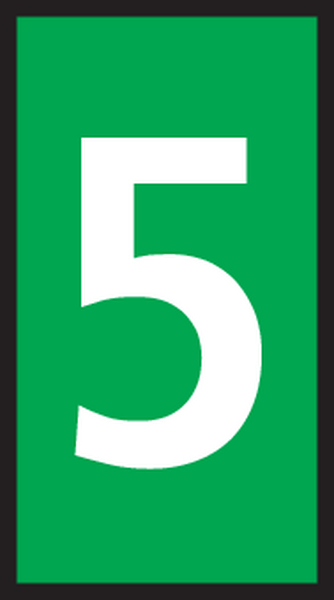

    Marking Text 5
    Material Silicone (SI)
    PART DESCRIPTION SLP8 Marker-SI-GN
    Pack Cont. 1000pcs.
    Package Content packed in Bag
    Type SLP8 Marker
    Diameter (D) 0.8mm
    Length (L) 3.0mm
    Print Method silkscreen print
    Wall (WT) 0.50mm
    Flammability UL 94 HB
    Halogen-free Yes
    Operating Temperature -65 °C to +180 °C, intermittent 250 °C
    Pre-Printed Yes
    Specifications
    Specifications BS-2848 Type 5 Class 105T, BS-3858 Type 5, BS-3G-198 Type 4
    Country of Origin GB
    GTIN-13 / EAN 5022660193248
    ETIM 7.0 Key EC001530
    ETIM 8.0 Key EC001530
    ETIM 9.0 Key EC001530
