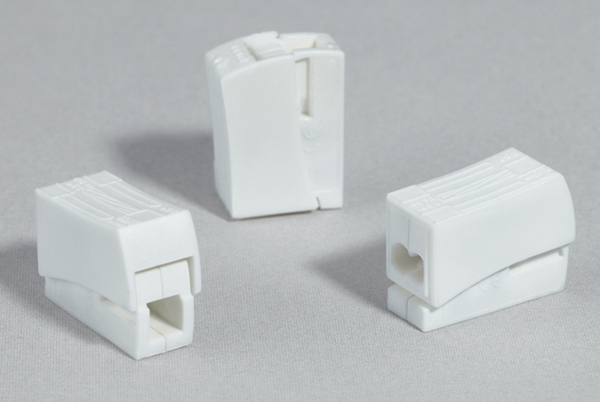

Push-in wire connector, 3 conductors, 0.5 mm² - 2.5mm², white, 100pcs.
Art.-No. 148-90023
| HECL-2/1-PA66-WH
|
Details
- Best suitable to connect solid with flexible wire
- Combines push-in connector with lock/unlock spring mechanism
- For fine-stranded conductors at lighting input
- Use with typical voltage current of 450 V / 24 A

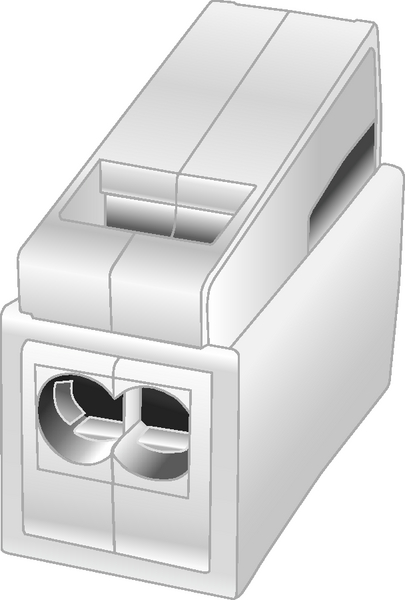

- Either one or two inputs for solid conductor on installation side
- Very flexible application
- Tool-free application for easy, time-saving, safe connection
- Especially for overhead work and when wires are difficult to access
Request your individual offer now
Request quote
More products in this product group:

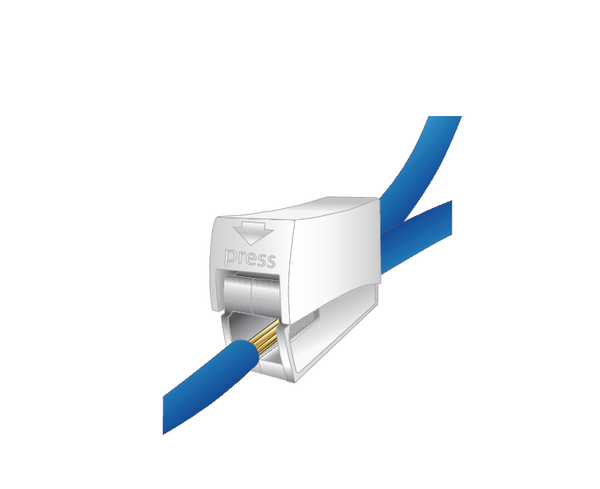

| Application | A typical application is lighting installation, where the solid conductor from concealed cabling has to be connected to a flexible conductor for lighting. The 2/1 variant allows the looping through of the supply lines for additional devices. The conductor on the output/lighting side can easily be inserted by pressing the locking mechanism and can be released in the same way at any time. The lighting side can carry any kind of conductor and makes HelaCon Lux connectors also useful to connect devices that carry flexible connecting cables like control devices e.g. for blinds, fans and other drives. |
| Colour | White (WH) |
| Local order number | HECL-2/1-PA-WH-100ST |
| Material | Polyamide 6.6 (PA66) |
| Number of Conductors | 3 |
| PART DESCRIPTION | HECL-2/1-PA66-WH |
| Pack Cont. | 100pcs. |
| Package Content packed in | Box |
| Product Family | HelaCon Lux |
| Product Group | Connectors - For Lighting Installation |
| Short Description | Push-in Wire Connector 3-pole 0.5 - 2.5 mm² white |
| Type | HECL-2/1 |
| Variant | Double conductor terminal |
Download
|
|
|
| Country of Origin | CN |
| Customs Number | 85369010 |
| GTIN-13 / EAN | 4031026317113 |
| Packaging 1 - Height (m) | 0.07m |
| Packaging 1 - Length (m) | 0.105m |
| Packaging 1 - Qty | 100 |
| Packaging 1 - Type | Bag |
| Packaging 1 - Volume (m³) | 0.00055m³ |
| Packaging 1 - Weight (kg) | 0.225001kg |
| Packaging 1 - Width (m) | 0.075m |
| Packaging 3 - Height (m) | 0.32m |
| Packaging 3 - Length (m) | 0.37m |
| Packaging 3 - Qty | 4500 |
| Packaging 3 - Type | Carton |
| Packaging 3 - Volume (m³) | 0.029m³ |
| Packaging 3 - Weight (kg) | 10.625kg |
| Packaging 3 - Width (m) | 0.245m |
| Packaging 4 - Height (m) | 1.104m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 121500 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.06m³ |
| Packaging 4 - Weight (kg) | 307.875kg |
| Packaging 4 - Width (m) | 0.8m |
