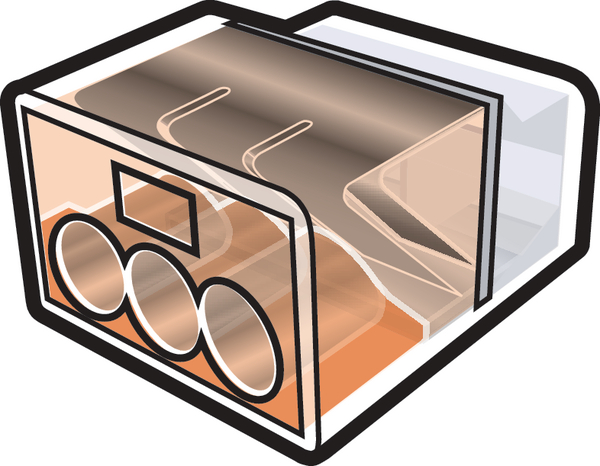

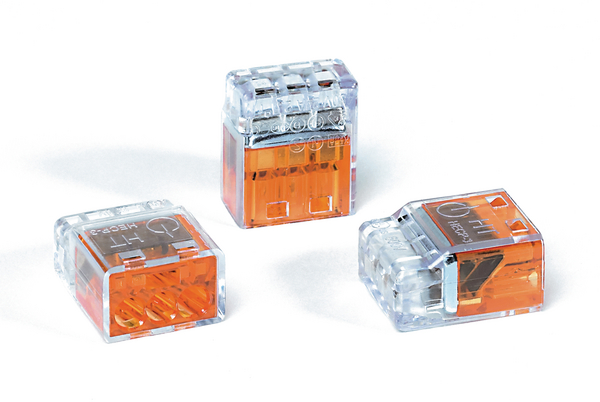

Push-in wire connector, 3 conductors, 0.5 to 2.5 mm² solid / stranded (max. 7 cores), transparent/orange, 100pcs.
Art.-No. 148-90001
| HECP-3-PC-CL/OG
|
Copied
This product is not available anymore.
Alternative product available
- Sophisticated push-in wire connector
- For professional cable connections in electrical installations
- Double spring for easy assembly
- Supports installers in difficult situations like overhead work
- Correct installation can be visually checked through transparent housing
- Different colour codes for easy identification of size

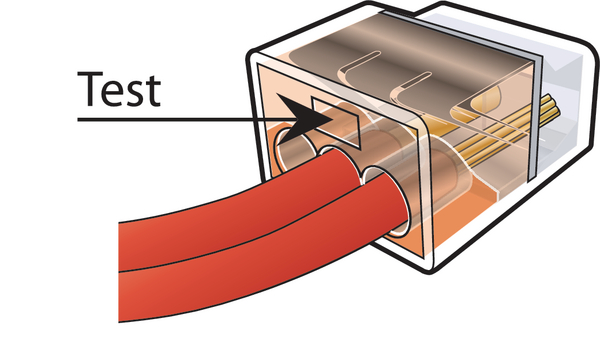

- Separate voltage test entry on front
- Safe application, installation and maintenance
Request your individual offer now
Request quote
More products in this product group:
| Application | HelaCon connectors are used for fast, easy and reliable connection and distribution of cable and conductors in electrical installation applications. |
| Colour | Transparent (CL), Orange (OG) |
| Material | Polycarbonate (PC) |
| Number of Conductors | 3 |
| PART DESCRIPTION | HECP-3-PC-CL/OG |

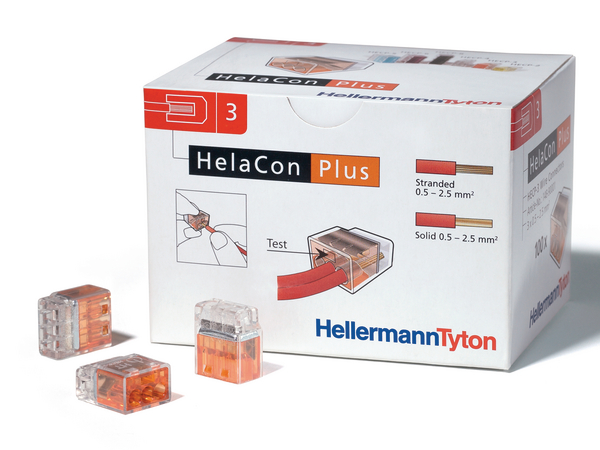

| Pack Cont. | 100pcs. |
| Package Content packed in | Box |
| Port count | 3 |
| Product Family | HelaCon Plus |
| Product Group | Connectors |
| Short Description | Push-in Wire Connector 3-pole 0.5 to 2.5 mm² solid / stranded (max. 7 cores) transparent/orange |
| Suitable for flexible core (Yes/No) | No |
| Suitable for multi wire core (Yes/No) | Yes |
| Suitable for solid core (Yes/No) | Yes |
| Type | HECP-3 |
Download
| ELV compliant Dir. Art. 4 (2) | YES |
| Flammability | UL 94 V2 |
| Halogen-free | Yes |
| Hazardous Goods | No |
| Operating Temperature | -30 °C to +85 °C |
| ROHS compliant | Yes |
| Specifications |
|
| Specifications | ANSI/UL 486-A, ANSI/UL 486-B, ANSI/UL 486-C, CEN, DEMKO, DIN EN 60998-2-2:2005-03, EN 60998-2-2:1993, ENEC, FIMKO, NEMKO, SEMKO |
| UL Listed (US and Canada) | Yes |
| UL Listed (US and Canada) | Yes |
| UL-File Number | E316080 |
| Country of Origin | CN |
| Customs Number | 85369010 |
| GTIN-13 / EAN | 4031026268774 |
| Packaging 1 - Height (m) | 0.07m |
| Packaging 1 - Length (m) | 0.105m |
| Packaging 1 - Qty | 100 |
| Packaging 1 - Type | Bag |
| Packaging 1 - Volume (m³) | 0.00055125m³ |
| Packaging 1 - Weight (kg) | 0.370001kg |
| Packaging 1 - Width (m) | 0.075m |
| Packaging 2 - Height (m) | 0.075m |
| Packaging 2 - Length (m) | 0.35m |
| Packaging 2 - Qty | 500 |
| Packaging 2 - Type | Carton |
| Packaging 2 - Volume (m³) | 0.0026m³ |
| Packaging 2 - Weight (kg) | 1.85kg |
| Packaging 2 - Width (m) | 0.1m |
| Packaging 3 - Height (m) | 0.32m |
| Packaging 3 - Length (m) | 0.37m |
| Packaging 3 - Qty | 4800 |
| Packaging 3 - Type | Carton |
| Packaging 3 - Volume (m³) | 0.029m³ |
| Packaging 3 - Weight (kg) | 18.26kg |
| Packaging 3 - Width (m) | 0.245m |
| Packaging 4 - Height (m) | 1.104m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 129600 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.06m³ |
| Packaging 4 - Weight (kg) | 514.02kg |
| Packaging 4 - Width (m) | 0.8m |
