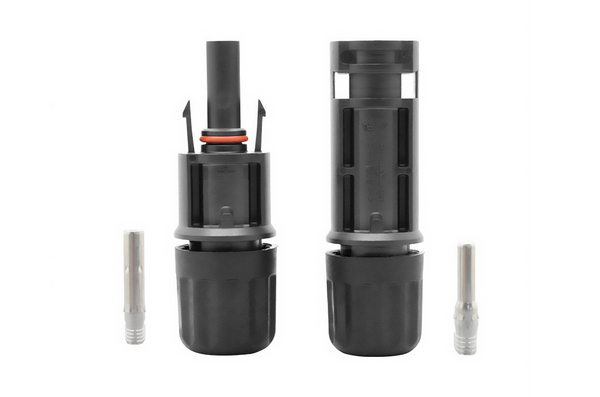

Solar Cable Connectors - IP68 Connectors for the Solar Industry
Art.-No. 147-50000 | HT-SCC-PPE-BK |  Details

    • Ratchet click-fit design / NEC Locking system for safety
    • Lightweight, durable V0 material / UL94-V0
    • IP68 Rated
    • UV Resistant
    • IEC1500V / UL1500V
    • HT-SCC - 50 Pair Bulk Pack / HT-SCCPAIR - Single Male & Female Pair Pack
    • TUV / UL / IEC / CE Standards
    Show more
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application Solar
    Colour Black (BK)
    Description Solar Cable Connectors - MC4 Compatible
    Local order number HT-SCC
    Material Polyphenylenether (PPE)
    PART DESCRIPTION HT-SCC-PPE-BK
    Pack Cont. 50pcs.
    Package Content packed in Bag
    Product Family IP68 Rated Connectors For The Solar Industry
    Product Group Solar Cable Connectors
    Short Description Solar Cable Connectors - IP68 Connectors for the Solar Industry
    Technical Description HT-SCC / HT-SCCPAIR are IP68 connectors used in the Solar Industry they utilize high quality materials, ensuring long-term reliability. Lower contact resistance and higher current transfer capability contribute to high product efficiency.
    HT-SCC connectors feature an IP68 waterproof rating and are suitable for use within a broad operating temperature range from -40°C to 85°C.
    Type HT-SCC
    Height (H) 360mm
    Halogen-free Yes
    Limited Fire Hazard Yes
    Operating Temperature -40 °C to +85 °C
    ROHS compliant Yes
    Specifications
    Country of Origin CN
    GTIN-13 / EAN 4031026743059
