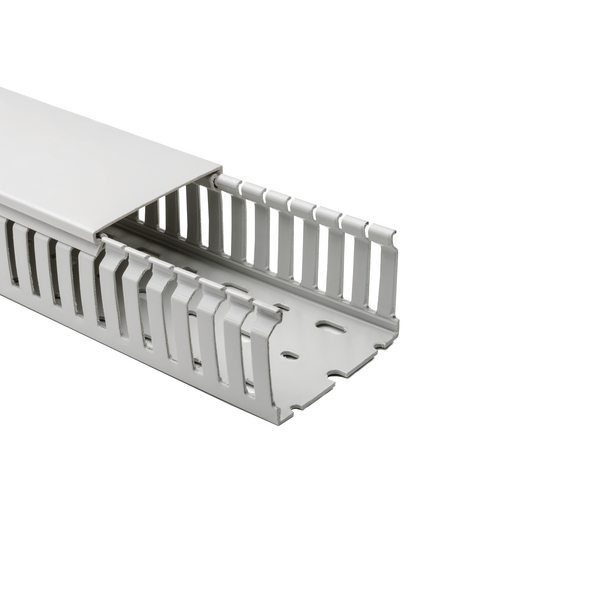

Wiring duct 75x50 mm, 2000 mm, PC/ABS, grey
Art.-No. 183-17550
| HTWD-HF-75X50-PC/ABS-GY
|
Details

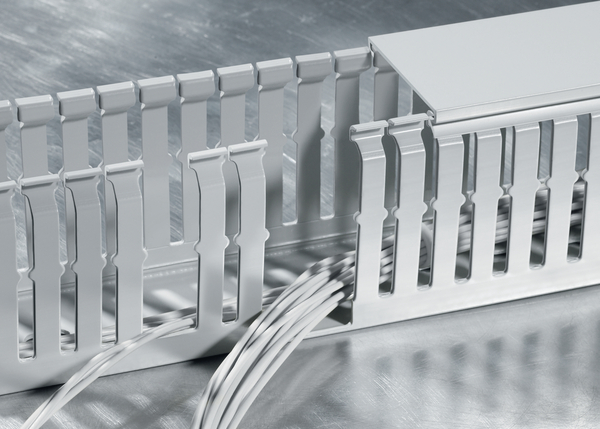

- Excellent fire-safety characteristics

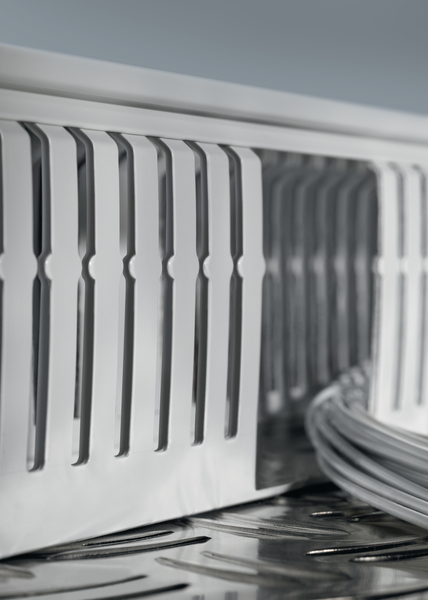

- Narrow slots suitable for small-diameter wires
- Smooth, burr-free edges protect installers from injury and wires from damage
- Fingers can be removed with no sharp edges at pre-notched snap-off points
- Further pre-notched snap-off point at base of sidewall allow cutting out and removing sections of sidewall with no sharp edges

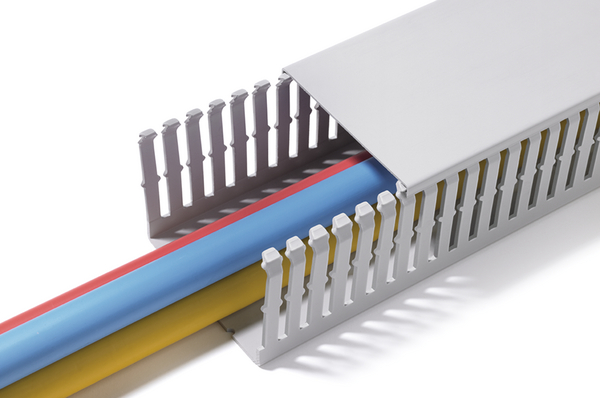

- Duct covers hold securely even in a vertical position and under vibration
- Cover is flush with side of duct, allowing for tight, contiguous placement of duct

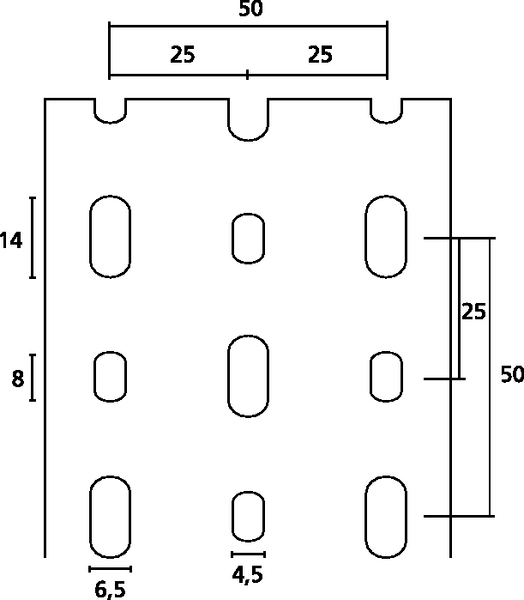

- Base perforation according to DIN EN 50085
Request your individual offer now
Request quote
More products in this product group:
| Application | HellermannTyton HTWD-HF halogen-free ducts are used wherever there are high demands on personal or material safety, such as public transport, tunnels, lifts and data processing centres. Note: Halogen-free PC+ABS is not resistant to all oils and greases. |
| Colour | Grey RAL 7035 (RAL7035) |
| Current leak stable Yes/No | Yes |
| Fixation Method | Screw Mounting |
| Local order number | HTWD-HF-75X50-PC+ABS-GY |
| Material | Acrylonitrile Butadiene Styrene alloyed with Polycarbonate (PC/ABS) |
| PART DESCRIPTION | HTWD-HF-75X50-PC/ABS-GY |
| Pack Cont. | 28m |
| Package Content packed in | Box |
| Product Family | HelaDuct HTWD-HF (DIN sizes) |
| Product Group | HTWD Halogen Free Wiring Duct |
| Short Description | Wiring duct 75x50 mm, 2000 mm, PC/ABS, grey |
| Type | HTWD-HF-75X50 |
| Type of side wall | Slotted |
Download
| CE Certification | Yes |
| CSA Certified | No |
| ELV compliant Dir. Art. 4 (2) | YES |
| Flammability | UL 94 V0 |
| Halogen-free | Yes |
| Hazardous Goods | No |
| Limited Fire Hazard | Yes |
| Operating Temperature | -25 °C to +90 °C |
| ROHS compliant | Yes |
| Specifications | ANSI/UL 62275, EN 45545-2 |
| Specifications |
|
| UL Listed (US and Canada) | No |
| UL Listed (US and Canada) | No |
| UL OCD link | Link |
| UL Recognized (US and Canada) | Yes |
| UL Recognized (US and Canada) | No |
| UL-File Number | E357929 |
| UV-Stabilised | No |
|
|
|
| Country of Origin | DE |
| Customs Number | 39259020 |
| GTIN-13 / EAN | 4031026297606 |
| Packaging 3 - Height (m) | 0.142m |
| Packaging 3 - Length (m) | 2.02m |
| Packaging 3 - Qty | 28 |
| Packaging 3 - Type | Carton |
| Packaging 3 - Volume (m³) | 0.0817m³ |
| Packaging 3 - Weight (kg) | 12.85kg |
| Packaging 3 - Width (m) | 0.285m |
| Packaging 4 - Height (m) | 1.138m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 392 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.092m³ |
| Packaging 4 - Weight (kg) | 200.898kg |
| Packaging 4 - Width (m) | 0.8m |
