24mm-34mm Cable Duct/Sheath Anchor Kit
Art.-No. 857-40311 | HCA-24-34 |  Details

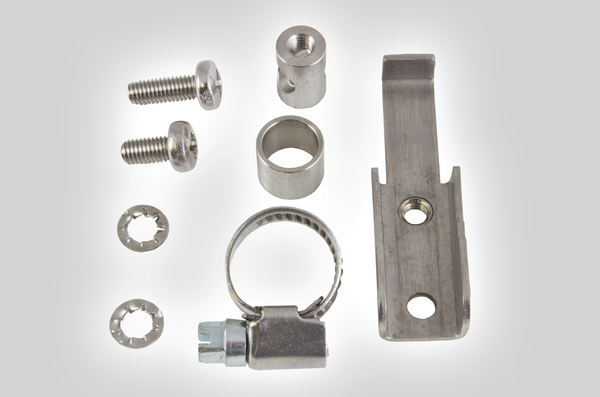

Hose Clip Anchor Kit Components

    • Provides strain relief to fibre optic cables with insufficient or no solid or stranded strength members
    • 4 kits which cover a cable diameter range of 10mm to 34mm
    • Manufactured from stainless steel
    Add to watchlist

    Request your individual offer now

     Request quote
    Description 24mm-34mm Cable Duct/Sheath Anchor Kit
    PART DESCRIPTION HCA-24-34
    Package Content packed in Bag
    Product Family Closure Base Accessories
    Product Group Cable/Duct Sheath Anchor Kit
    Short Description 24mm-34mm Cable Duct/Sheath Anchor Kit

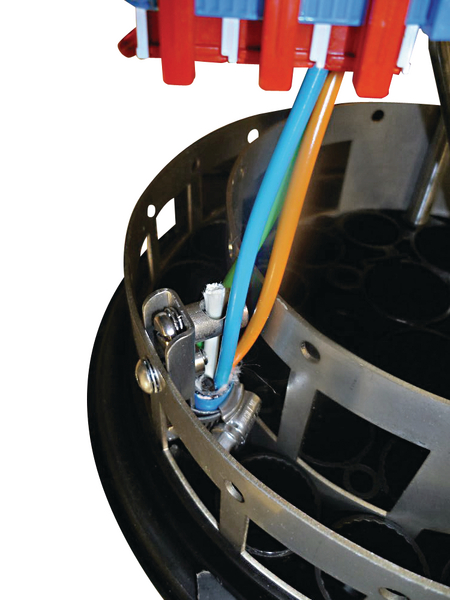

    Technical Description The Cable/Duct Sheath Anchor kits provide an alternative anchoring method for cables which have insufficient or no cable strength members. The clip is tightened around the cable sheath and the bracket fixed to the closure to prevent any cable movement. The range of stainless steel anchor kits comes in four sizes to fit cable diameters ranging from 10mm to 34mm. A strength member anchor kit to provide additional support to the cable is available if required. The Cable/Duct Sheath kits are only suitable for use with the UFC, FDN and FML closures.
    Type HCA-24-34
    Hazardous Goods No
    Country of Origin GB
    Customs Number 73269098
    GTIN-13 / EAN 5022660116063
    Packaging 1 - Height (m) 0.02m
    Packaging 1 - Length (m) 0.02m
    Packaging 1 - Qty 1
    Packaging 1 - Type Bag
    Packaging 1 - Volume (m³) 0.00001m³
    Packaging 1 - Weight (kg) 0.22kg
    Packaging 1 - Width (m) 0.02m
    ETIM 7.0 Key EC000368
    ETIM 8.0 Key EC000368
    ETIM 9.0 Key EC000368
