20/11/2024

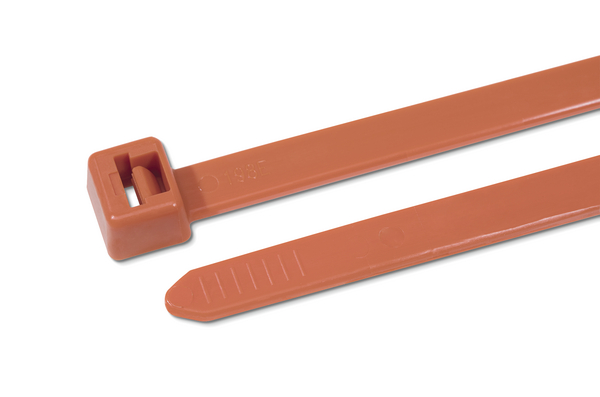

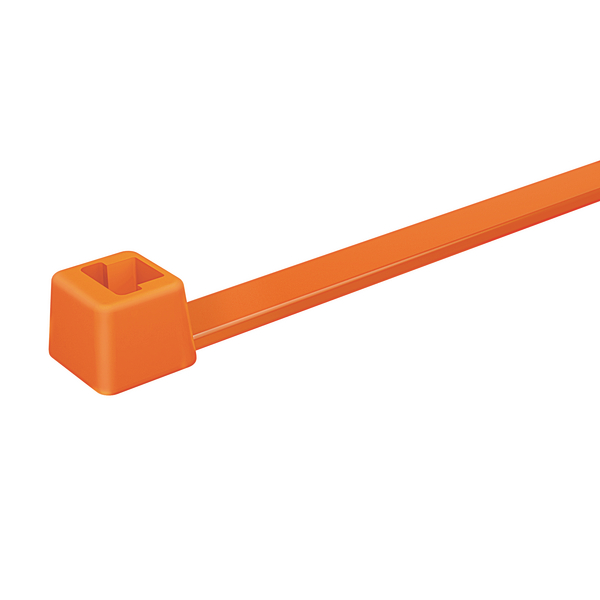

Cable tie inside serrated, 387x7.6mm, ∅3.0-100mm, orange, 100pcs.
Art.-No. 111-00285 | T120R(E)-PA66-OG |  Details

T-Series Cable Ties feature inside serrations to provide a positive hold on wire and cable bundles.

    • Available in a wide range of materials and sizes
    • High tensile strength with very low insertion force
    • Only high quality plastic is used meeting recycling targets
    • Inside serrated cable ties for a strong hold onto bundles
    • Ergonomic bent tail offers quick and simple installation
    • Easy application either manually or with an application tool
    Show more
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads Datasheet
    e-Learning
    Application These cable ties are used for routing, bundling and securing of cables, pipes and hoses.
    Application Method Quick, simple fixing by hand or with HellermannTyton tensioning tools
    Colour Orange (OG)
    Identification Plate Position none
    Local order number T120R.NO3P
    Material Polyamide 6.6 (PA66)
    PART DESCRIPTION T120R(E)-PA66-OG
    Pack Cont. 100pcs.
    Package Content packed in Bag
    Product Family T-Series in PA66 coloured
    Product Group Cable Ties Polyamide 6.6 standard
    Releasable Closure (Yes/No) No
    Short Description Cable Tie 387x7.6 mm orange
    Tie Closure plastic pawl
    Type T120R(E)
    Variant Inside Serrated
    Bundle Diameter max (metric) 100mm
    Bundle ∅ 3.0-100mm
    Bundle ∅ min. 3.0mm
    Length (L) 387mm
    Min.Tensile Strength 535N
    Thickness (T) 1.8mm
    Width (W) 7.6mm
    Flammability UL 94 V2
    Halogen-free Yes
    Operating Temperature -40 °C to +85 °C, (+105 °C, 500 h)
    ROHS compliant Yes
    Specifications
    Specifications IEC 60092 series
    Country of Origin GB
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
