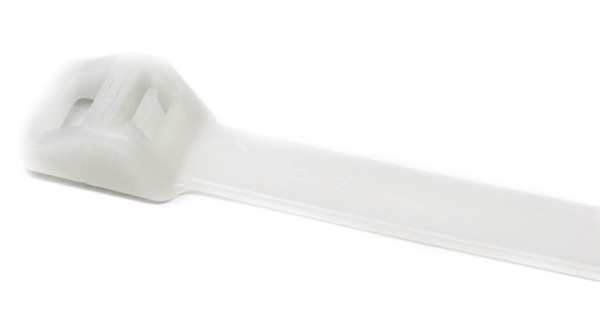

Cable tie inside serrated, 730.0x12.4mm, ∅12.0-203.0mm, natural, 25pcs.
Art.-No. 111-25219
| T250I-PA66-NA
|
Details
- Available in a wide range of materials and sizes
- High tensile strength with very low insertion force
- Only high quality plastic is used meeting recycling targets
- Inside serrated cable ties for a strong hold onto bundles
- Ergonomic bent tail offers quick and simple installation
- Easy application either manually or with an application tool
Request your individual offer now
Request quote
More products in this product group:
| Application | These cable ties are used for routing, bundling and securing of cables, pipes and hoses. |
| Application Method | Quick, simple fixing by hand or with HellermannTyton tensioning tools |
| Colour | Natural (NA) |
| Identification Plate Position | none |
| Local order number | T250I9X2 |
| Material | Polyamide 6.6 (PA66) |
| PART DESCRIPTION | T250I-PA66-NA |
| Pack Cont. | 25pcs. |
| Package Content packed in | Bag |
| Product Family | T-Series in PA66 natural |
| Product Group | Cable Ties Polyamide 6.6 standard |
| Releasable Closure (Yes/No) | No |
| Short Description | Cable Tie 730x12.5 natural |
| Tie Closure | plastic pawl |
| Type | T250I |
| Variant | Inside Serrated |
|
|
| Bundle Diameter max (metric) | 203.0mm |
| Bundle ∅ | 12.0-203.0mm |
| Bundle ∅ min. | 12.0mm |
| Cable Tie Head Length (metric) | 22.4mm |
| Cable Tie Head Width (metric) | 20.0mm |
| Height (H) | 9.5mm |
| Length (L) | 730.0mm |
| Min.Tensile Strength | 1115N |
| Strap Width max. (G) (imperial) | 0.8" |
| Thickness (T) | 2.2mm |
| Weight/Unit | 0.021306kg |
| Width (W) | 12.4mm |
Download
| CE Certification | Yes |
| CSA Certified | No |
| ELV compliant Dir. Art. 4 (2) | YES |
| Flammability | UL 94 V2 |
| Halogen-free | Yes |
| Hazardous Goods | No |
| Operating Temperature | -40 °C to +85 °C |
| Plenum Rating | AH-2 |
| ROHS compliant | Yes |
| Specifications |
|
| Specifications | UL 62275 |
| UL Listed (US and Canada) | Yes |
| UL Listed (US and Canada) | Yes |
| UL Recognized (US and Canada) | Yes |
| UL Recognized (US and Canada) | Yes |
| UL-File Number | E64139 |
| UV-Stabilised | No |
|
|
|
| Country of Origin | MX |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4031026106793 |
| Packaging 1 - Height (m) | 0.025m |
| Packaging 1 - Length (m) | 0.905m |
| Packaging 1 - Qty | 25 |
| Packaging 1 - Type | Bag |
| Packaging 1 - Volume (m³) | 0.00351m³ |
| Packaging 1 - Weight (kg) | 0.54665kg |
| Packaging 1 - Width (m) | 0.155m |
| Packaging 3 - Height (m) | 0.225425m |
| Packaging 3 - Length (m) | 0.84455m |
| Packaging 3 - Qty | 500 |
| Packaging 3 - Type | Box |
| Packaging 3 - Volume (m³) | 0.0447m³ |
| Packaging 3 - Weight (kg) | 11.583kg |
| Packaging 3 - Width (m) | 0.23495m |
| Packaging 4 - Height (m) | 1.269m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 7500 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.218m³ |
| Packaging 4 - Weight (kg) | 194.745kg |
| Packaging 4 - Width (m) | 0.8m |
