03/12/2024

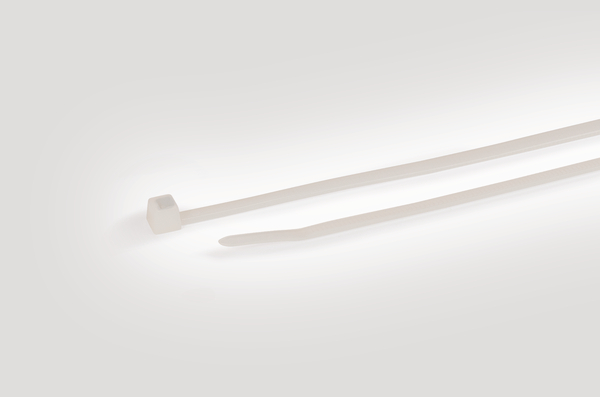

Cable tie inside serrated, 200x4.6mm, ∅1.5-50.0mm, natural, 500pcs.
Art.-No. 111-05014 | T50R-PA66-NA |  Details

    • Available in a wide range of materials and sizes
    • High tensile strength with very low insertion force
    • Only high quality plastic is used meeting recycling targets
    • Inside serrated cable ties for a strong hold onto bundles
    • Ergonomic bent tail offers quick and simple installation
    • Easy application either manually or with an application tool
    Show more
    Package size
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads Datasheet e-Learning
    Application These cable ties are used for routing, bundling and securing of cables, pipes and hoses.
    Application Method Quick, simple fixing by hand or with HellermannTyton tensioning tools
    Colour Natural (NA)
    Identification Plate Position none
    Local order number T50R.NN6P
    Material Polyamide 6.6 (PA66)
    PART DESCRIPTION T50R-PA66-NA
    Pack Cont. 500pcs.
    Package Content packed in Bag
    Product Family T-Series in PA66 natural
    Product Group Cable Ties Polyamide 6.6 standard
    Releasable Closure (Yes/No) No
    Short Description Cable Tie 200x4.6 natural
    Tie Closure plastic pawl
    Type T50R
    Variant Inside Serrated
    Bundle Diameter max (metric) 50.0mm
    Bundle ∅ 1.5-50.0mm
    Bundle ∅ min. 1.5mm
    Cable Tie Head Height (metric) 5.9mm
    Cable Tie Head Length (metric) 7.3mm
    Cable Tie Head Width (metric) 7.6mm
    Length (L) 200mm
    Min.Tensile Strength 225N
    Strap Width max. (G) (imperial) 0.3"
    Thickness (T) 1.2mm
    Width (W) 4.6mm
    Flammability UL 94 V2
    Halogen-free Yes
    Operating Temperature -40 °C to +85 °C, (+105 °C, 500 h)
    ROHS compliant Yes
    Specifications
    Specifications BV 03856/H0 BV, IEC 62275:2006
    Country of Origin GB
    Customs Number 39269097
    GTIN-13 / EAN 5022660018978
    Packaging 1 - Weight (kg) 1.3kg
    Packaging 3 - Height (m) 0.192m
    Packaging 3 - Length (m) 0.586m
    Packaging 3 - Type Box
    Packaging 3 - Volume (m³) 0.0439m³
    Packaging 3 - Width (m) 0.39m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
