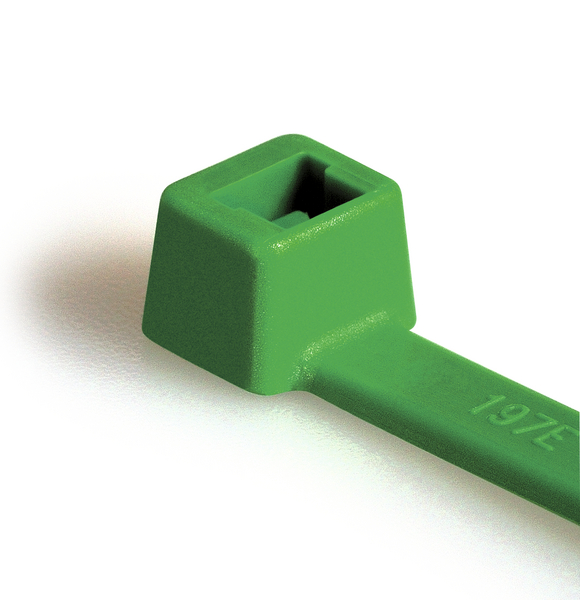

Cable tie inside serrated, 210x4.7mm, ⌀1.5-55.0mm, green, 100pcs.
Art.-No. 116-08015 | T80R-PA66-GN |  Details

T-Series Cable Ties feature inside serrations to provide a positive hold on wire and cable bundles.

    • Available in a wide range of materials and sizes
      High tensile strength with very low insertion force
      Only high quality plastic is used meeting recycling targets
      Inside serrated cable ties for a strong hold onto bundles
      Ergonomic bent tail offers quick and simple installation
      Easy application either manually or with an application tool
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads Datasheet e-Learning
    Application These cable ties are used for routing, bundling and securing of cables, pipes and hoses.
    Application Method Quick, simple fixing by hand or with HellermannTyton tensioning tools
    Colour Green (GN)
    Identification Plate Position none
    Local order number T80R.NG3P
    Material Polyamide 6.6 (PA66)
    PART DESCRIPTION T80R-PA66-GN
    Pack Cont. 100pcs.
    Package Content packed in pcs.
    Product Family T-Series in PA66 coloured
    Product Group Cable Ties Polyamide 6.6 standard
    Releasable Closure (Yes/No) No
    Short Description Cable Tie 210x4.7 green
    Tie Closure plastic pawl
    Type T80R
    Variant Inside Serrated
    Bundle ⌀ 1.5-55.0mm
    Bundle ⌀ min. 1.5mm
    Bundle Diameter max (metric) 55.0mm
    Length (L) 210mm
    Min.Tensile Strength 355N
    Thickness (T) 1.3mm
    Weight/Unit 0.00028kg
    Width (W) 4.7mm
    ELV compliant Dir. Art. 4 (2) YES
    Flammability UL 94 V2
    Halogen-free Yes
    Hazardous Goods No
    Operating Temperature -40 °C to +85 °C, (+105 °C, 500 h)
    ROHS compliant Yes
    Specifications
    UV-Stabilised No
    Country of Origin SG
    Customs Number 39269097
    GTIN-13 / EAN 4031026194370
    Packaging 1 - Height (m) 0.021m
    Packaging 1 - Length (m) 0.24m
    Packaging 1 - Qty 100
    Packaging 1 - Type Bag
    Packaging 1 - Volume (m³) 0.00058m³
    Packaging 1 - Weight (kg) 0.150001kg
    Packaging 1 - Width (m) 0.115m
    Packaging 3 - Height (m) 0.218m
    Packaging 3 - Length (m) 0.599m
    Packaging 3 - Qty 7000
    Packaging 3 - Type Box
    Packaging 3 - Volume (m³) 0.0522m³
    Packaging 3 - Weight (kg) 11.25007kg
    Packaging 3 - Width (m) 0.4m
    Packaging 4 - Height (m) 1.234m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 140000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.185m³
    Packaging 4 - Weight (kg) 246.0kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
