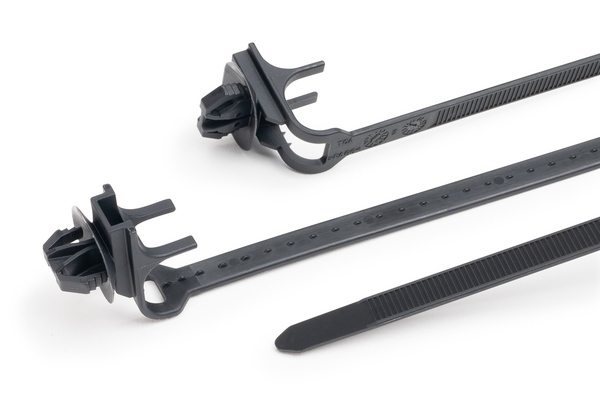

Fixing tie for hole (oval), ∅10-30mm, black, 2400pcs.
Art.-No. 156-02976 | CTOS198DAH62x122-PA66HS/PA66-BK Details

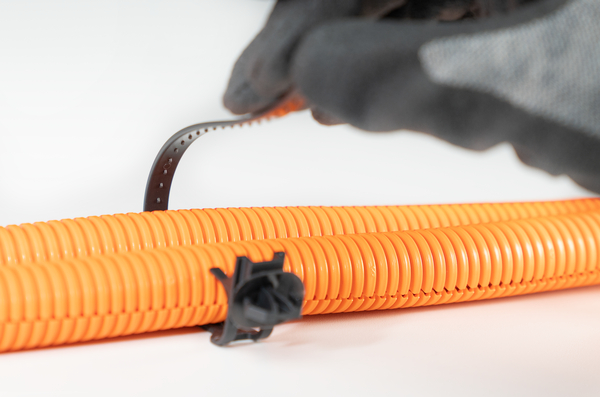

  • Easy to install without the need for a tool
  • Arrowhead simply locks into place
  • Disc adjusts tie for pressures from various directions and minimises access of dust and dirt
  • Cable tie head always situated in a defined position
  • Versions for oval holes feature anti-twist protection
Show more

Request your individual offer now

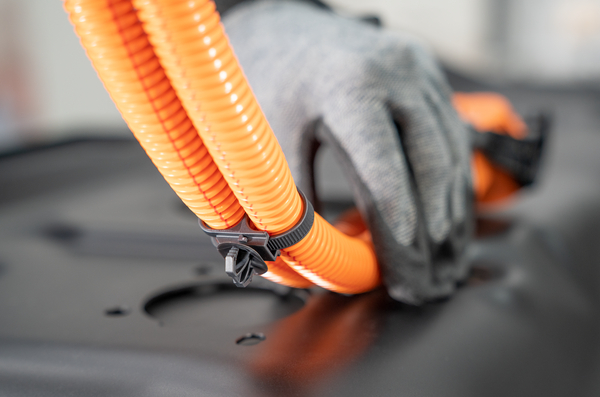

Application With a diverse range of fixing possibilities are ideal for use in many different industries, including automotive, aerospace and panel building.
Colour Black (BK)
Fixation Method Arrowhead for oval holes
Identification Plate Position none
Material Polyamide 6.6, heat stabilised (PA66HS), Polyamide 6.6 (PA66)
PART DESCRIPTION CTOS198DAH62x122-PA66HS/PA66-BK
Pack Cont. 2400pcs.
Package Content packed in Bag
Product Family for oval holes
Product Group 1-piece fixing ties with arrowhead, with disc
Releasable Closure (Yes/No) No
Tie Closure plastic pawl
Type CTOS198DAH62x122
Bundle Diameter max (metric) 30mm
Bundle ∅ 10-30mm
Bundle ∅ min. 10mm
Fixing Hole Shape Oval
Weight/Unit 0.0045kg
for Hole ∅ (FH) 6.2 x 12.2 mm
for Panel Thickness min - max 0.7 - 3 mm
ELV compliant Dir. Art. 4 (2) YES
Hazardous Goods No
ROHS compliant Yes
Specifications
Country of Origin FR
Customs Number 39269097
GTIN-13 / EAN 4031026640204
Packaging 1 - Length (m) 0.7m
Packaging 1 - Qty 500
Packaging 1 - Type Bag
Packaging 1 - Weight (kg) 2.3016kg
Packaging 1 - Width (m) 0.43m
Packaging 3 - Height (m) 0.538m
Packaging 3 - Length (m) 0.584m
Packaging 3 - Qty 2000
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.1213
Packaging 3 - Weight (kg) 10.3064kg
Packaging 3 - Width (m) 0.386m
Packaging 4 - Height (m) 1.22m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 16000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.171
Packaging 4 - Weight (kg) 103.464kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000046
ETIM 8.0 Key EC000046
ETIM 9.0 Key EC000046
UNSPSC Key 39121703
