22/12/2024

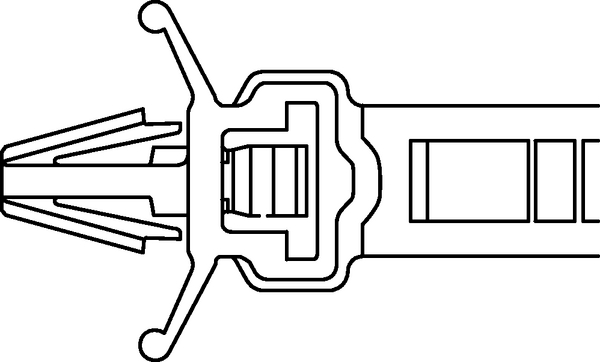

Fixing tie for hole (round), ∅5.0-32.0mm, natural, 100pcs.
Art.-No. 115-00087 | RT50SSF5.4-PA66-NA |  Details

    • Easy to assemble without the need for a tool
    • Cable tie head always situated in defined position
    • Arrowhead simply locks into place
    • Supporting legs provide a secure and firm fixing in areas where space is limited
    • Releasable and therefor reusable
    Show more
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads Datasheet
    Application With a diverse range of fixing possibilities are ideal for use in many different industries, including automotive, aerospace and panel building.
    Colour Natural (NA)
    Fixation Method arrowhead
    Identification Plate Position none
    Key product features releasable
    Local order number RT50SSF5.4
    Material Polyamide 6.6 (PA66)
    PART DESCRIPTION RT50SSF5.4-PA66-NA
    Pack Cont. 100pcs.
    Package Content packed in Bag
    Product Family for round holes, releasable
    Product Group 1-piece fixing ties with arrowhead, with wings
    Releasable Closure (Yes/No) Yes
    Type RT50SSF5.4
    Bundle Diameter max (metric) 32.0mm
    Bundle ∅ 5.0-32.0mm
    Bundle ∅ min. 5.0mm
    Height (H2) 10mm
    Length (L) 150mm
    Length (L2) 18.20mm
    Min.Tensile Strength 225N
    Thickness (T) 1.2mm
    Width (W) 7.6mm
    Width (W2) 8.0mm
    Width (W3) 19.0mm
    for Hole ∅ (FH) 5.2 - 5.6 mm
    for Panel Thickness min - max 0.5 - 1.6 mm
    Flammability UL 94 V2
    Operating Temperature -40 °C to +85 °C
    ROHS compliant Yes
    Specifications
    Specifications ANSI/UL 1565, ANSI/UL 62275
    UL OCD link Link
    UL Recognized (US and Canada) Yes
    UL-File Number E64962
    Country of Origin JP
    GTIN-13 / EAN 4944387949933
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
    Show all
    Cable holder Cable holder

    Cable holder

    Looking for a secure way to fasten cables or wires? Our plastic cable holders are easy to install and suitable for almost any application. Learn more...

    Cable holder >
