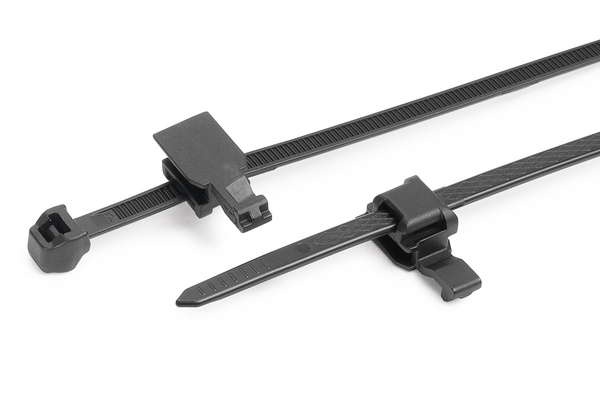

Fixing tie for connector/for cable bundles, outside serrated, ⌀2-45mm, black, 500pcs.
Art.-No. 156-03259
| S50ROSCC11A-PP/PA66HIRHS-BK
|
Details
- Easy to assemble without a need for a tool
- Preassembled cable tie with connector clip
- Connector can be removed without damage
- Rattle-free mounting
Request your individual offer now
Request quote
More products in this product group:
| Application | These two piece fixing ties with connector clips have been designed for electronic cables and cable sets used in the automotve industry. The connector are pushed onto the connector clip and hold firmly in place. |
| Cable Tie | Polypropylene (PP) |
| Colour | Black (BK) |
| Foot Part | Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS) |
| Identification Plate Position | none |
| Local order number | S50ROSCC11A_PP/PA66HIRHS_BK |
| Material | Polypropylene (PP), Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS) |
| PART DESCRIPTION | S50ROSCC11A-PP/PA66HIRHS-BK |
| Pack Cont. | 500pcs. |
| Package Content packed in | Bag |
| Product Family | Connector clip family |
| Product Group | 2-piece fixing tie with connector clip |
| Releasable Closure (Yes/No) | No |
| Short Description | 2-piece part, Connector clip adapter with bundling bar and cable tie, outside serrated,⌀2-45mm |
| Tie Closure | plastic pawl |
| Type | S50ROSCC11A |
| Type of connection | USCAR11 |
| Variant | Outside Serrated with AntiSlip Engraving |
Download
|
|
|
| Country of Origin | PL |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4031026732497 |
| Packaging 1 - Height (m) | 0.08m |
| Packaging 1 - Length (m) | 0.455m |
| Packaging 1 - Qty | 500 |
| Packaging 1 - Type | Bag |
| Packaging 1 - Volume (m³) | 0.01474m³ |
| Packaging 1 - Weight (kg) | 1.081135kg |
| Packaging 1 - Width (m) | 0.405m |
| Packaging 3 - Height (m) | 0.368m |
| Packaging 3 - Length (m) | 0.584m |
| Packaging 3 - Qty | 4000 |
| Packaging 3 - Type | Box |
| Packaging 3 - Volume (m³) | 0.083m³ |
| Packaging 3 - Weight (kg) | 9.46908kg |
| Packaging 3 - Width (m) | 0.386m |
| Packaging 4 - Height (m) | 1.248m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 48000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.198m³ |
| Packaging 4 - Weight (kg) | 134.616kg |
| Packaging 4 - Width (m) | 0.8m |
