11/02/2025

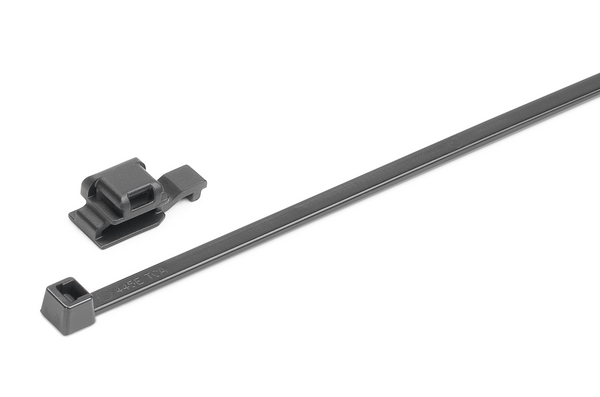

Fixing tie for connector/for cable bundles, inside serrated, ⌀2.0-45.0mm, black, 5000pcs.
Art.-No. 156-03249 | T50RCC11M-SET-PA66HIRHS-BK |  Details

    • Easy to assemble without a need for a tool
    • Preassembled cable tie with connector clip
    • Connector can be removed without damage
    • Rattle-free mounting
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application These two piece fixing ties with connector clips have been designed for electronic cables and cable sets used in the automotve industry. The connector are pushed onto the connector clip and hold firmly in place.
    Cable Tie Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    Colour Black (BK)
    Identification Plate Position none
    Local order number T50RCC11M-SET_PA66HS/PA66HIRHS_BK
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION T50RCC11M-SET-PA66HIRHS-BK
    Pack Cont. 5000pcs.
    Package Content packed in Bag
    Product Family Connector clip family
    Product Group PA66HIRHS
    Releasable Closure (Yes/No) No
    Short Description 2-piece part, Connector clip adapter with bundling bar and cable tie, outside serrated,⌀2-45mm (unassembled)
    Tie Closure plastic pawl
    Type T50RCC11M-SET
    Type of connection USCAR11
    Variant 11 mm USCAR Connector Clip
    Bundle ⌀ 2.0-45.0mm
    Bundle ⌀ min. 2.0mm
    Bundle Diameter max (metric) 45.0mm
    Height (H) 10.1mm
    Min.Tensile Strength 225N
    Weight/Unit 0.002239kg
    ELV compliant Dir. Art. 4 (2) YES
    Halogen-free Yes
    Hazardous Goods No
    ROHS compliant Yes
    Specifications
    Country of Origin PL
    Customs Number 39269097
    GTIN-13 / EAN 4031026732534
    Packaging 1 - Type Bag
    Packaging 3 - Height (m) 0.204m
    Packaging 3 - Length (m) 0.591m
    Packaging 3 - Qty 5000
    Packaging 3 - Type Box
    Packaging 3 - Volume (m³) 0.048m³
    Packaging 3 - Weight (kg) 11.845kg
    Packaging 3 - Width (m) 0.398m
    Packaging 4 - Height (m) 1.164m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 100000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.117m³
    Packaging 4 - Weight (kg) 257.9kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
