22/12/2024

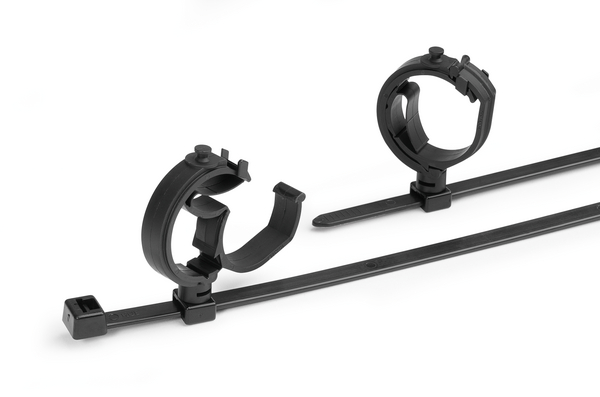

Fixing tie with pipe/tube holder, ∅108.0mm, black, 200pcs.
Art.-No. 156-03382 | T120RIAHC3TCR-PA66HIRHS-BK |  Details

2-piece fixing tie, 360° rotatable, a cable tie in combination with an AHC to route and fix harnesses.

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads Datasheet
    Application Offering a simple and secure method of attaching cables together. Originally designed for the automotive industry, these products are used in a wide range of applications.
    Colour Black (BK)
    Identification Plate Position none
    Key product features rotatable, for multiple routing, lockable, removable
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION T120RIAHC3TCR-PA66HIRHS-BK
    Pack Cont. 200pcs.
    Package Content packed in Bag
    Product Family IAHC-Series
    Product Group 2-piece fixing ties with automatic harness clip
    Short Description 2-piece fixing tie 390x7.6 mm, hose retainer, automatic close, rotatable, high impact modified, heat stabilised, black
    Type T120RIAHC3TCR
    Attach to Ø 19.0 - 28.0
    Bundle Diameter max (metric) 108.0mm
    Bundle ∅ 108.0mm
    Length (L) 390mm
    Min.Tensile Strength 530N
    Thickness (T) 1.8mm
    Weight/Unit 0.01215kg
    Width (W) 7.6mm
    ELV compliant Dir. Art. 4 (2) YES
    Hazardous Goods No
    ROHS compliant Yes
    Specifications
    Country of Origin FR
    Customs Number 39269097
    GTIN-13 / EAN 4031026659596
    Packaging 3 - Height (m) 0.3m
    Packaging 3 - Length (m) 0.4m
    Packaging 3 - Qty 200
    Packaging 3 - Type Box
    Packaging 3 - Volume (m³) 0.036m³
    Packaging 3 - Weight (kg) 2.925kg
    Packaging 3 - Width (m) 0.3m
    Packaging 4 - Height (m) 1.044m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 4800
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.002m³
    Packaging 4 - Weight (kg) 91.2kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121717
