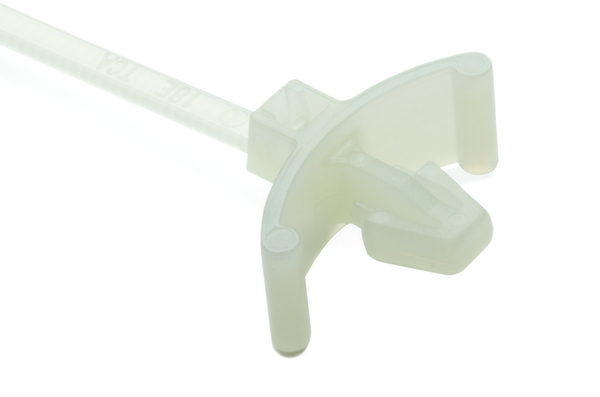

Fixing tie for hole (round), inside serrated, ∅1.5-16.0mm, natural, 500pcs.
Art.-No. 126-00419 | T18RSF-PA46-NA |  Details

Inside serrated T18RSF for round hole fixing and combined with cable tie fixing function.

    • Easy to assemble without the need for a tool
    • Cable tie head always situated in defined position
    • Arrowhead simply locks into place
    • Supporting legs provide a secure and firm fixing in areas where space is limited
    • Variations for round and oval holes are available
    • “Ladder style” types are very flexible
    Show more
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads Datasheet
    Application For the bundling and fixing of cable harnesses, pipes and hoses in the automotive, aerospace, white goods industries and panel building.
    Colour Natural (NA)
    Fixation Method arrowhead
    Identification Plate Position none
    Local order number T18RSF-PA46-NA (500)
    Material Polyamide 4.6 (PA46)
    PART DESCRIPTION T18RSF-PA46-NA
    Pack Cont. 500pcs.
    Package Content packed in Bag
    Product Family for round holes
    Product Group 1-Piece Fixing Ties with Arrowhead, with Wings
    Releasable Closure (Yes/No) No
    Tie Closure plastic pawl
    Type T18RSF
    Variant Inside Serrated
    Bundle Diameter max (metric) 16.0mm
    Bundle ∅ 1.5-16.0mm
    Bundle ∅ min. 1.5mm
    Length (L) 100mm
    Min.Tensile Strength 80N
    Thickness (T) 1.0mm
    Weight/Unit 0.000583kg
    Width (W) 2.5mm
    Width (W2) 18.5mm
    for Hole ∅ (FH) 4.65 - 4.85 mm
    for Panel Thickness min - max 1 - 3 mm
    ELV compliant Dir. Art. 4 (2) YES
    Hazardous Goods No
    ROHS compliant Yes
    Specifications
    Country of Origin PL
    Customs Number 39269097
    GTIN-13 / EAN 4031026661506
    Packaging 1 - Height (m) 0.15m
    Packaging 1 - Length (m) 0.3m
    Packaging 1 - Qty 500
    Packaging 1 - Type Bag
    Packaging 1 - Volume (m³) 0.0117m³
    Packaging 1 - Weight (kg) 0.305362kg
    Packaging 1 - Width (m) 0.26m
    Packaging 3 - Height (m) 0.204m
    Packaging 3 - Length (m) 0.591m
    Packaging 3 - Qty 8000
    Packaging 3 - Type Box
    Packaging 3 - Volume (m³) 0.048m³
    Packaging 3 - Weight (kg) 5.535792kg
    Packaging 3 - Width (m) 0.398m
    Packaging 4 - Height (m) 1.164m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 160000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.117m³
    Packaging 4 - Weight (kg) 131.76kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
