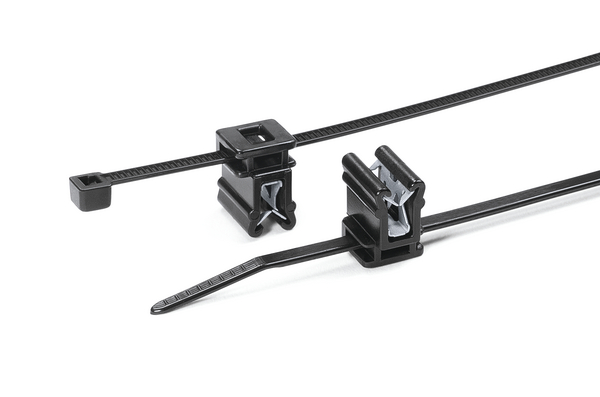

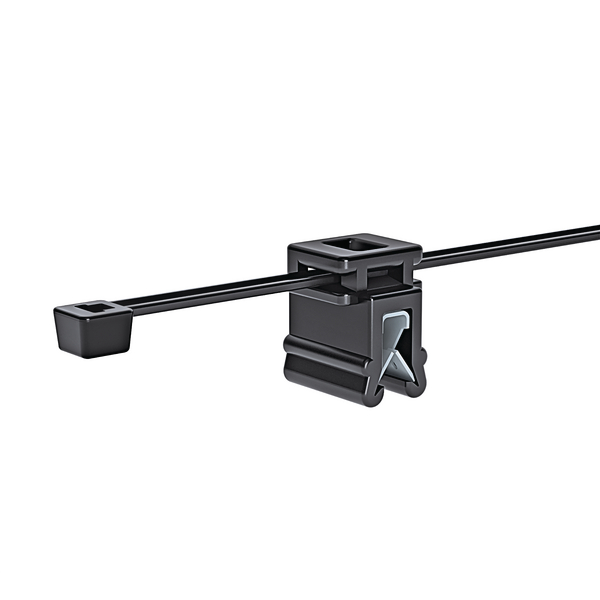

Fixing tie for edge, inside serrated, ∅4.0-33.0mm, black, 500pcs.
Art.-No. 150-76090 | T30REC4A-PA66HS/PA66HIRHS-BK | Details

2-piece fixing tie for edges 1 - 3 mm and harness routing on top parallel to the edge.

Pre-assembled 2-piece fixing tie with EdgeClip
Cable tie head can be moved after bundling
EC9, EC10, EC21 and EC22 are for minimum bundle diameters of 1 mm
For edges of 1 – 3 mm

Add to watchlist

Request your individual offer now

Request quote

Distributors near you

Downloads CAD-Download Datasheet

More products in this product group:

2-piece fixing ties for edges >

This product is part of:

Sample Pack ENG White Goods CTF

Base Data

Application	These cable ties and EdgeClip assemblies are ideal for use where holes are not acceptable or where due to temperature problems adhesives will fail. These assemblies are widely used for fixing and bundling cables, pipes and hoses within the automotive industry, harness making, panel buidling and electrical industry.
Anti rotation (Yes / No)	YES
Cable Tie	Polyamide 6.6, heat stabilised (PA66HS)
Colour	Black (BK)
Description	Available with either 'inside' or 'outside' serrated ties these two piece assemblies simply push onto an edge with thicknesses from 1.0 to 3.0mm. The high 'pull off' forces are due to the integrated metal clamp. Different EdgeClip variations are available. One version allows for cables to run parallel to the edge, whilst another allows for installation at 90 degrees to the edge. The clip is simply pushed on by hand and held firmly in place by the integrated metal clamp. No fixing hole is necessary. Combined with the outside serrated (OS) ties, specially designed to protect cables from chafing and wear, the EdgeClip family provides an excellent fastening solution.
Fixation Method	EdgeClip, top, assembled, 2 piece
Foot Part	Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
Identification Plate Position	none
Local order number	T30REC4A.NB6P
Material	Polyamide 6.6, heat stabilised (PA66HS), Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
No. of sides for tie attachment	4
PART DESCRIPTION	T30REC4A-PA66HS/PA66HIRHS-BK
Pack Cont.	500pcs.
Package Content packed in	Bag
Product Family	EdgeClip-Series, 1.0 - 3.0 mm, top fixing
Product Group	2-piece fixing ties for edges
Releasable Closure (Yes/No)	No
Short Description	2-Piece Fixing Tie 150x3.5 for Edges 1-3 mm HS-black
Type	T30REC4A
Variant	Inside Serrated

Product Dimensions

Bundle Diameter max (metric)	33.0mm
Bundle ∅	4.0-33.0mm
Bundle ∅ min.	4.0mm
Height (H)	1.1mm
Height (H2)	16.0mm
Length (L)	148mm
Length (L2)	14.0mm
Min.Tensile Strength	135N
Thickness (T)	1.1mm
Weight/Unit	0.00221kg
Width (W)	3.6mm
Width (W2)	11.5mm
for Panel Thickness min - max	1 - 3 mm
for Panel Thickness min - max	0 - 0.1 "

Downloads

Specifications

ELV compliant Dir. Art. 4 (2)	YES
Flammability	UL 94 HB
Hazardous Goods	No
Operating Temperature	-40 °C to +105 °C, (+105 °C for 500 h)
Operating Temperature Foot Part (Metric)	-40 °C to +110 °C
ROHS compliant	Yes
Specifications
Specifications	ANSI/UL 1565, ANSI/UL 62275, ANSI/UL 746B, csa-C22.2 no. 62275

Logistics and Packaging


Country of Origin	DE
Customs Number	39269097
GTIN-13 / EAN	4031026206493
Packaging 1 - Height (m)	0.1m
Packaging 1 - Length (m)	0.395m
Packaging 1 - Qty	500
Packaging 1 - Type	Bag
Packaging 1 - Volume (m³)	0.01778m³
Packaging 1 - Weight (kg)	1.134135kg
Packaging 1 - Width (m)	0.45m
Packaging 3 - Height (m)	0.368m
Packaging 3 - Length (m)	0.584m
Packaging 3 - Qty	5000
Packaging 3 - Type	Box
Packaging 3 - Volume (m³)	0.083m³
Packaging 3 - Weight (kg)	12.16135kg
Packaging 3 - Width (m)	0.386m
Packaging 4 - Height (m)	1.248m
Packaging 4 - Length (m)	1.2m
Packaging 4 - Qty	60000
Packaging 4 - Type	pallet
Packaging 4 - Volume (m³)	1.198m³
Packaging 4 - Weight (kg)	166.92kg
Packaging 4 - Width (m)	0.8m
