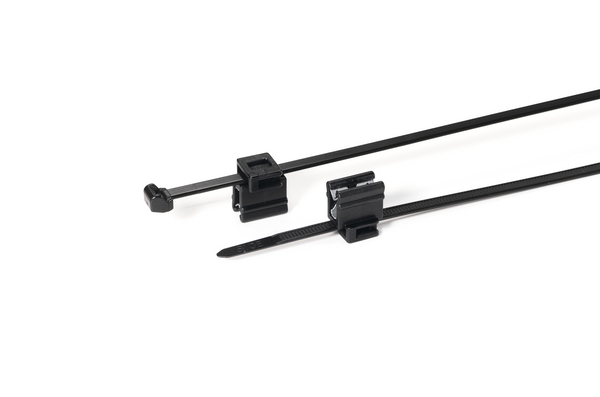

Fixing tie for edge, outside serrated, ∅4.0-45.0mm, black, 500pcs.
Art.-No. 156-01154 | T50ROSEC4B-PA66W-BK | Details

Pre-assembled 2-piece fixing tie with EdgeClip
Cable tie head can be moved after bundling
EC9, EC10, EC21 and EC22 are for minimum bundle diameters of 1 mm
For edges of 1 - 3 mm

Add to watchlist

Request your individual offer now

Request quote

Distributors near you

Downloads CAD-Download Datasheet

More products in this product group:

2-piece fixing ties for edges >

This product is part of:

SamplesPack_Photovoltaic

Base Data

Application	These cable ties and EdgeClip assemblies are ideal for use where holes are not acceptable or where due to temperature problems adhesives will fail. These assemblies are widely used for fixing and bundling cables, pipes and hoses within the automotive industry, harness making, panel buidling and electrical industry.
Cable Tie	Polyamide 6.6, UV-resistant (PA66W)
Colour	Black (BK)
Description	Available with either 'inside' or 'outside' serrated ties these two piece assemblies simply push onto an edge with thicknesses from 1.0 to 3.0mm. The high 'pull off' forces are due to the integrated metal clamp. Different EdgeClip variations are available. One version allows for cables to run parallel to the edge, whilst another allows for installation at 90 degrees to the edge. The clip is simply pushed on by hand and held firmly in place by the integrated metal clamp. No fixing hole is necessary. Combined with the outside serrated (OS) ties, specially designed to protect cables from chafing and wear, the EdgeClip family provides an excellent fastening solution.
Fixation Method	EdgeClip, top, assembled, 2 piece
Foot Part	Polyamide 6.6, UV-resistant (PA66W)
Identification Plate Position	none
Local order number	T50ROSEC4B-W_PA66W_D1
Material	Polyamide 6.6, UV-resistant (PA66W)
PART DESCRIPTION	T50ROSEC4B-PA66W-BK
Pack Cont.	500pcs.
Package Content packed in	Bag
Product Family	EdgeClip-Series, 1.0 - 3.0 mm, top fixing
Product Group	2-piece fixing ties for edges
Releasable Closure (Yes/No)	No
Short Description	2-Piece Fixing Tie 200x4.6 mm, for edges (1 - 3 mm), top fixing, UV-resistant, black
Type	T50ROSEC4B
Variant	Outside Serrated

Product Dimensions


Bundle Diameter max (metric)	45.0mm
Bundle ∅	4.0-45.0mm
Bundle ∅ min.	4.0mm
Height (H)	1.3mm
Height (H2)	10.8mm
Length (L)	200.0mm
Length (L2)	14.0mm
Min.Tensile Strength	225N
Thickness (T)	1.2mm
Weight/Unit	0.002836kg
Width (W)	4.6mm
Width (W2)	11.5mm
for Panel Thickness min - max	1 - 3 mm

Downloads

Specifications

ELV compliant Dir. Art. 4 (2)	YES
Flammability	UL 94 V2
Halogen-free	Yes
Hazardous Goods	No
Operating Temperature	-40 °C to +85 °C, (+105 °C, 500 h)
ROHS compliant	Yes
Specifications

Logistics and Packaging


Country of Origin	DE
Customs Number	39269097
GTIN-13 / EAN	4031026470627
Packaging 1 - Height (m)	0.12m
Packaging 1 - Length (m)	0.45m
Packaging 1 - Qty	500
Packaging 1 - Type	Bag
Packaging 1 - Volume (m³)	0.0216m³
Packaging 1 - Weight (kg)	1.447135kg
Packaging 1 - Width (m)	0.4m
Packaging 3 - Height (m)	0.368m
Packaging 3 - Length (m)	0.584m
Packaging 3 - Qty	4000
Packaging 3 - Type	Box
Packaging 3 - Volume (m³)	0.083m³
Packaging 3 - Weight (kg)	10.33308kg
Packaging 3 - Width (m)	0.386m
Packaging 4 - Height (m)	1.249m
Packaging 4 - Length (m)	1.2m
Packaging 4 - Qty	48000
Packaging 4 - Type	pallet
Packaging 4 - Volume (m³)	1.199m³
Packaging 4 - Weight (kg)	144.984kg
Packaging 4 - Width (m)	0.8m
