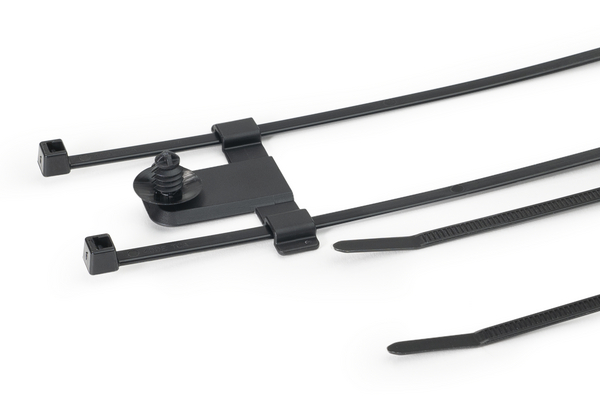

Fixing tie for hole (oval), inside serrated, ∅1.0-45.0mm, black, 500pcs.
Art.-No. 156-04152 | T50RDSO23.5-FT6.5C-PA66HS/PA66HIRHS-BK |  Details

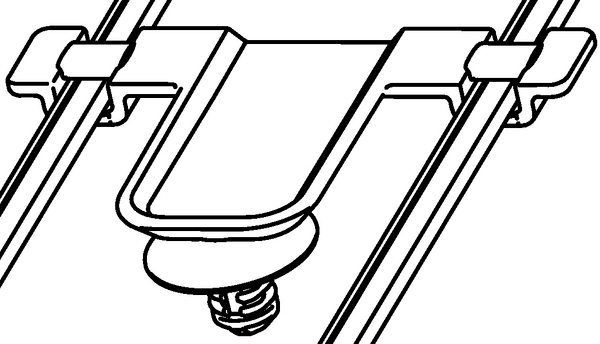

    • Pre-assembled 2-piece fixing tie with fir tree foot part
    • Cable tie head can be moved after bundling
    • Easy to assemble without the need for a tool
    • Disc adjusts tie for pressure from various directions and minimises access of dust, dirt and water
    • Fir tree foot part can be used for a variety of panel thicknesses
    • Suitable for use within threaded holes
    • DOP versions for oval holes feature anti-twist protection
    Show more
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads Datasheet
    Application Primarily designed for fixing cable harnesses in the automotive industry, their simplicity and ease of use, has resulted in these parts being used in many industries, for example: aviation, switch gear manufacture and white goods.
    Colour Black (BK)
    Fixation Method Fir Tree
    Identification Plate Position none
    Local order number T50RDSO23.5-FT6.5C-PA66HS/PA66HIRHS-BK
    Material Polyamide 6.6, heat stabilised (PA66HS), Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION T50RDSO23.5-FT6.5C-PA66HS/PA66HIRHS-BK
    Pack Cont. 500pcs.
    Package Content packed in Bag
    Product Family 2-Pieces Fixing Ties with Fir Tree, with Disc, for Oval Holes
    Product Group 2-Pieces Fixing Ties with Fir Tree, with Disc
    Tie Closure plastic pawl
    Type T50RDSO23.5-FT6.5C
    Variant Inside Serrated
    Bundle Diameter max (metric) 45.0mm
    Bundle ∅ 1.0-45.0mm
    Bundle ∅ min. 1.0mm
    Offset Length 23.5mm
    Panel Thickness max. 0.7 - 3.0mm
    Weight/Unit 0.005118kg
    for Hole ∅ (FH) 6.3 - 6.7 mm
    for Panel Thickness min - max 0.7 - 3 mm
    ELV compliant Dir. Art. 4 (2) YES
    Hazardous Goods No
    ROHS compliant Yes
    Specifications
    Country of Origin PL
    Customs Number 39269097
    GTIN-13 / EAN 4031026677026
    Packaging 1 - Height (m) 0.125m
    Packaging 1 - Length (m) 0.55m
    Packaging 1 - Qty 500
    Packaging 1 - Type Bag
    Packaging 1 - Volume (m³) 0.03231m³
    Packaging 1 - Weight (kg) 2.602597kg
    Packaging 1 - Width (m) 0.47m
    Packaging 3 - Height (m) 0.538m
    Packaging 3 - Length (m) 0.584m
    Packaging 3 - Type Box
    Packaging 3 - Volume (m³) 0.1213m³
    Packaging 3 - Width (m) 0.386m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Type pallet
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121717
